OPD

Steel

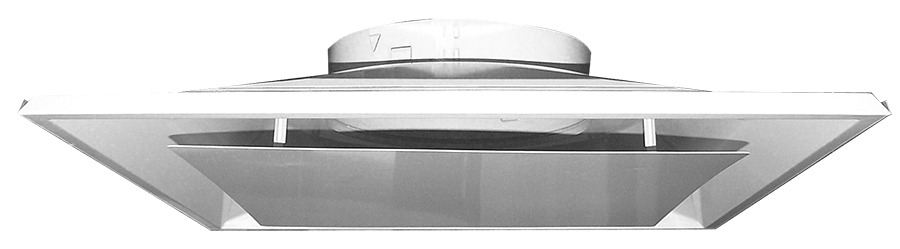

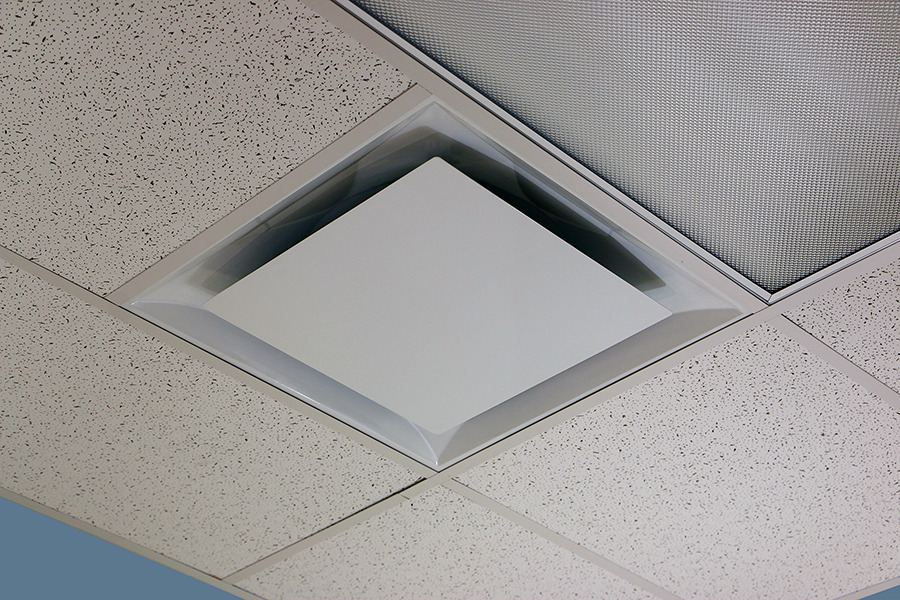

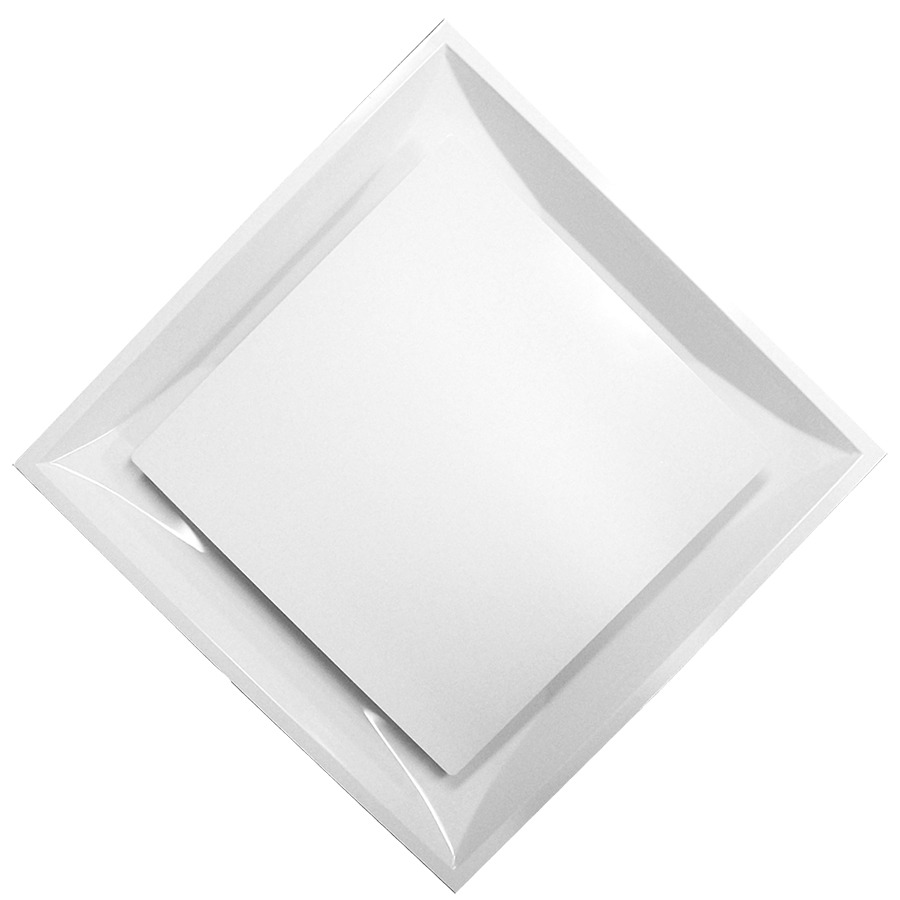

T-bar Plaque Diffuser

  • Heavy guage plaque with corner radii
  • Steel construction
  • 360° diffusion pattern
  • Fixed collar and no collar models
  • R1 insulation blanket
  • White finish
  • Made in the U.S.A.

Associated Series:

  • Series OPD NI
    • OPD with no insulation
  • Series OPD NI-38D
    • OPD with no insulation + installed Series 3800 damper
  • Series OPD 38D
    • OPD + R1 or R6 insulation blanket and installed Series 3800 damper
  • Series OPD P6
    • OPD + R6-rated fiberglass plenum

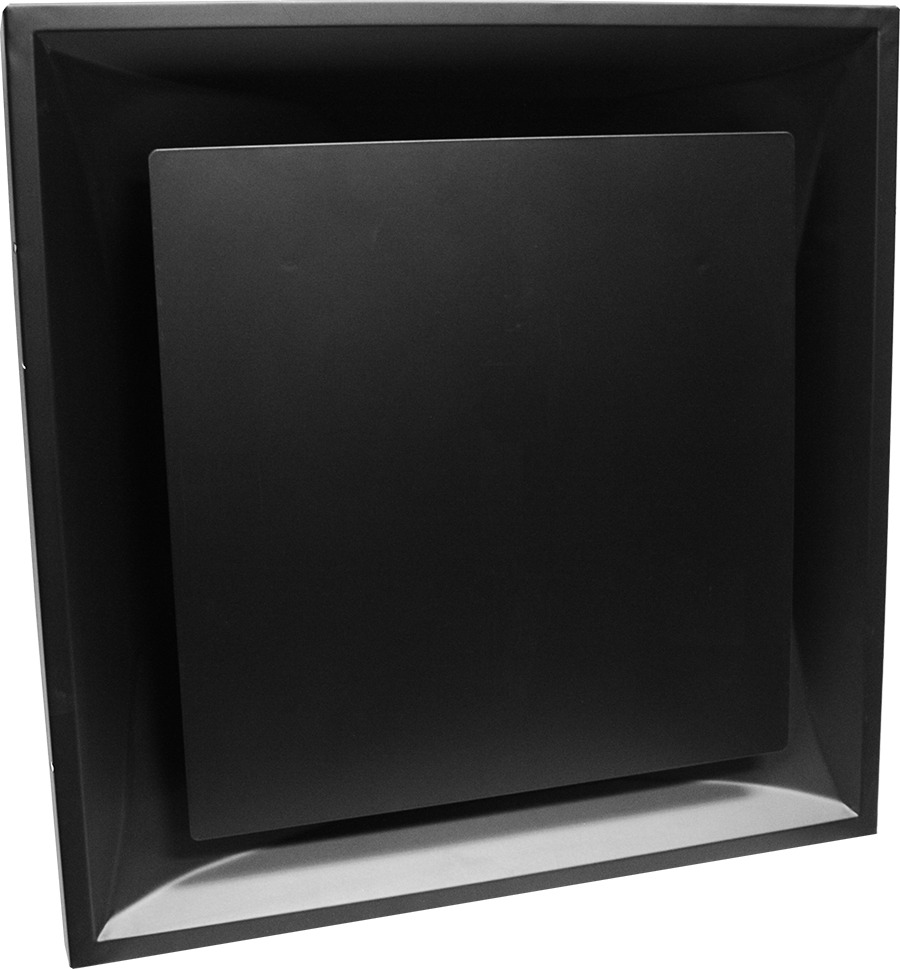

  • Series OPDANIBL
    • OPD with no insulation and Black finish

Part #DescriptionCtn QtyList Price Each
 NO INSULATION
OPDANINo Collar, No Insulation1--
OPDANIBLNo Collar, No Insulation, Black finish1--
OPD06NI6" Collar, No Insulation1--
OPD08NI8" collar, No insulation1--
OPD10NI10" collar, No insulation1--
OPD12NI12" collar, No insulation1--
OPD14NI14" collar, No insulation1--

 NO INSULATION; with SERIES 3800 DAMPER
OPD06NI-38D6" Collar, no insulation, Series 3800 damper1--
OPD08NI-38D8" Collar, no insulation, Series 3800 damper1--
OPD10NI-38D10" Collar, no insulation, Series 3800 damper1--
OPD12NI-38D12" Collar, no insulation, Series 3800 damper1--
OPD14NI-38D14" Collar, no insulation, Series 3800 damper1--

 WITH INSULATION
OPDANo Collar, R1 Insulation blanket1--
OPDA6No collar, R6 insulation blanket1--
OPD AP6No collar, R6 FIBERGLASS PLENUM1--
OPD066" collar, R1 insulation blanket1--
OPD0666" collar, R6 insulation blanket1--
OPD088" collar, R1 insulation blanket1--
OPD0868" Collar, R6 insulation blanket1--
OPD1010" collar, R1 insulation blanket1--
OPD10610" Collar, R6 insulation blanket1--
OPD1212" collar, R1 insulation blanket1--
OPD12612" Collar, R6 insulation blanket1--
OPD1414" collar, R1 insulation blanket1--
OPD14614" Collar, R6 insulation blanket1--

 WITH INSULATION and SERIES 3800 DAMPER
OPD06-38D6" Collar, R1 insulation blanket, Series 3800 damper1--
OPD066-38D6" Collar, R6 insulation blanket, Series 3800 damper1--
OPD08-38D8" Collar, R1 insulation blanket, Series 3800 damper1--
OPD086-38D8" Collar, R6 insulation blanket, Series 3800 damper1--
OPD10-38D10" Collar, R1 insulation blanket, Series 3800 damper1--
OPD106-38D10" Collar, R6 insulation blanket, Series 3800 damper1--
OPD12-38D12" Collar, R1 insulation blanket, Series 3800 damper1--
OPD126-38D12" Collar, R6 insulation blanket, Series 3800 damper1--
OPD14-38D14" Collar, R1 insulation blanket, Series 3800 damper1--
OPD146-38D14" Collar, R6 insulation blanket, Series 3800 damper1--
