DFP

Steel

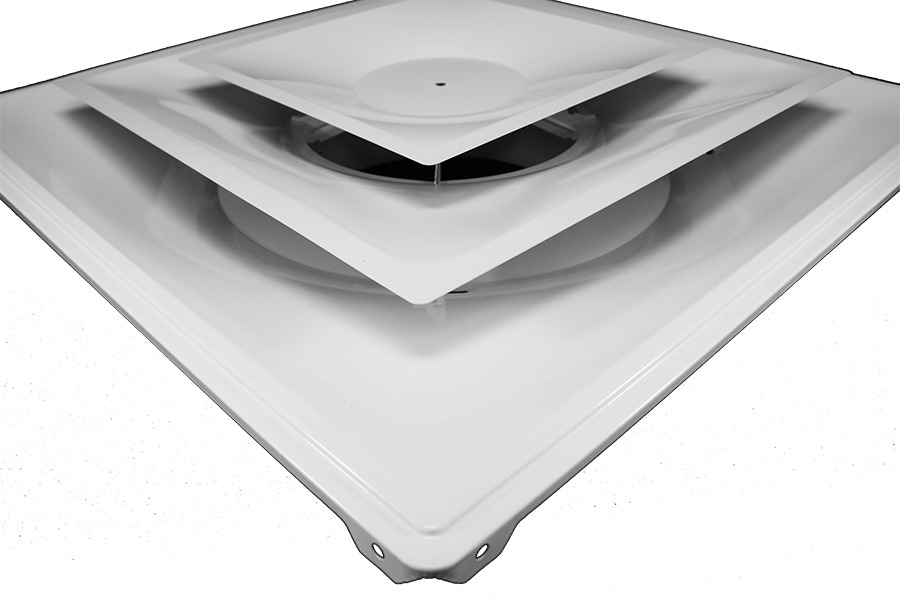

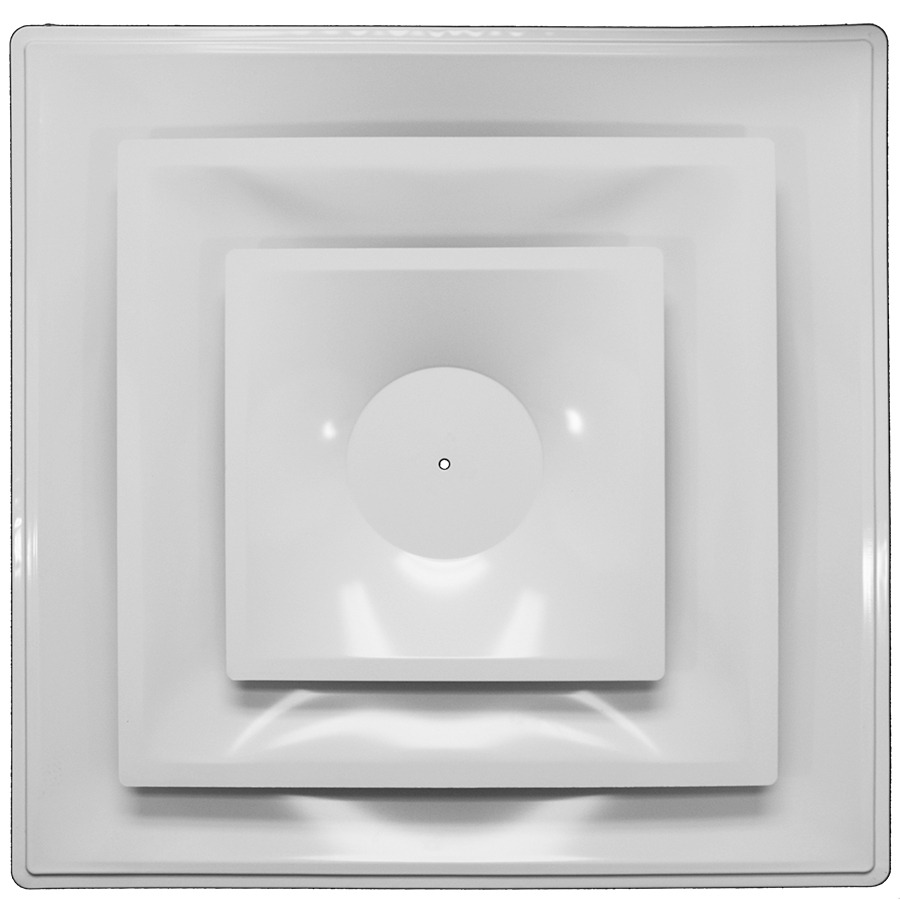

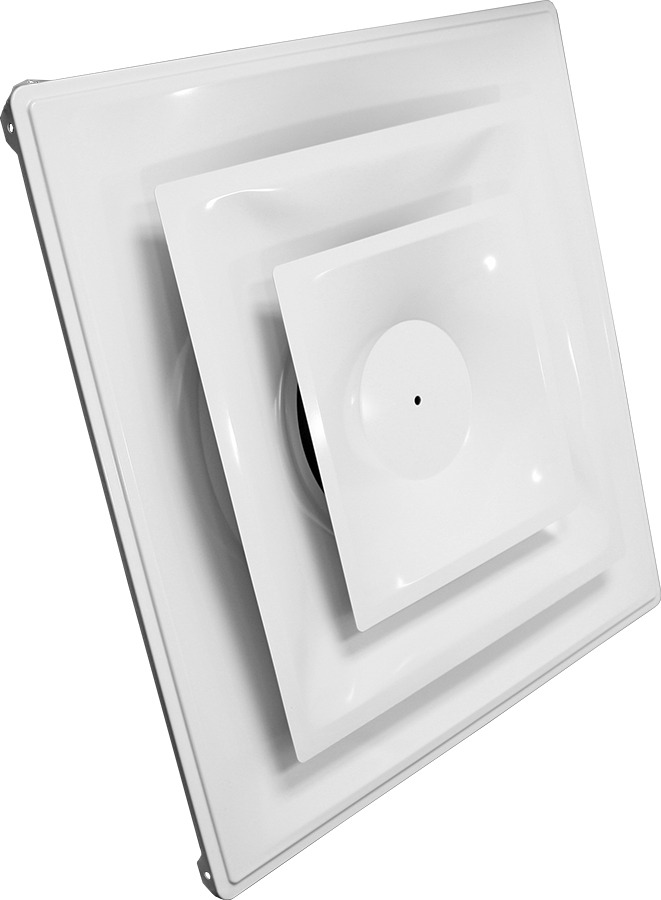

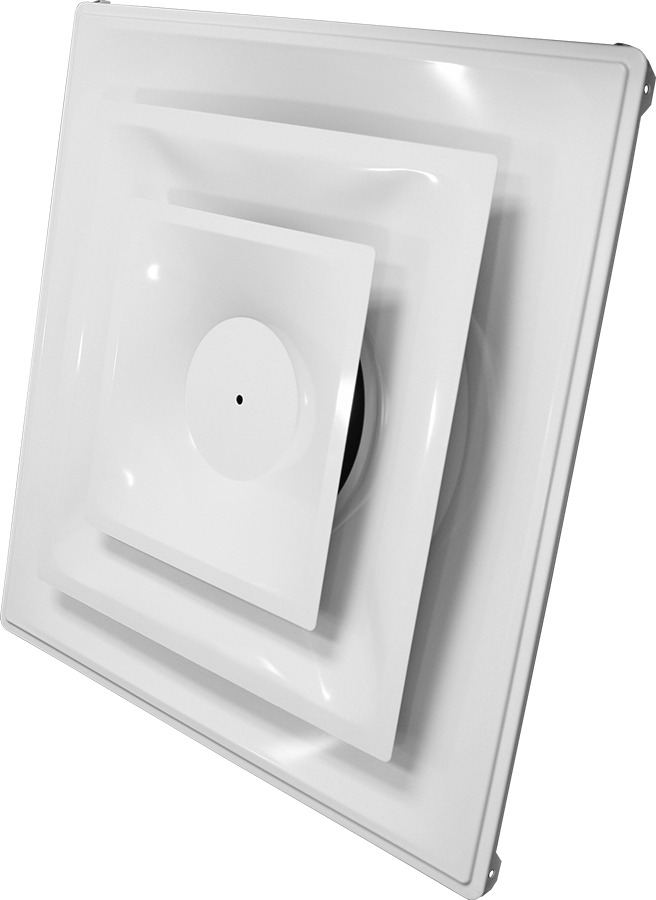

T-bar Diffuser

  • A design alternative to our standard Series FPD diffuser
  • Steel construction
  • 2-tier diffusion, 360° pattern
  • Fixed collar and no collar models
  • Models with and without insulation
  • White finish
  • Made in the U.S.A.
  • Packed 1 per carton, 60 per pallet


Associated Series:

  • Series DFP N

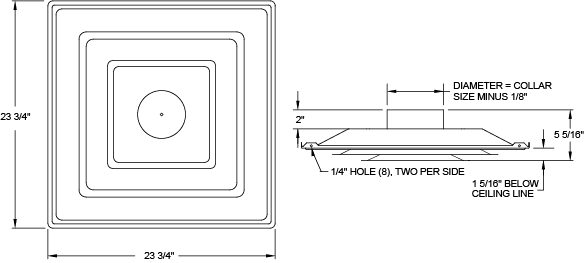

    • DFP with no insulation
  • Series DFP I

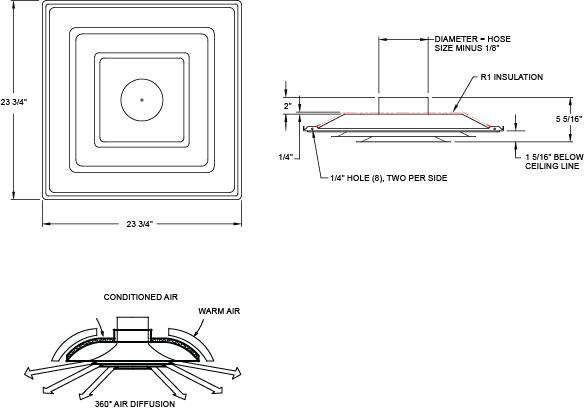

    • DFP + R1 insulation blanket
  • Series DFP I6

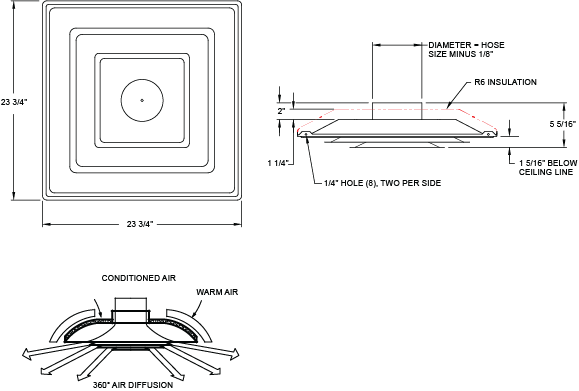

    • DFP + R6 insulation blanket
  • Series DFP ND

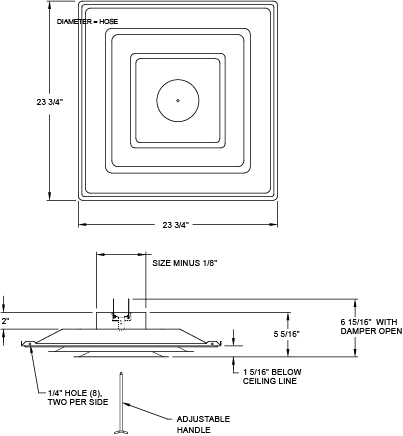

    • DFP with no insulation + installed Series 3800 damper
  • Series DFP ID

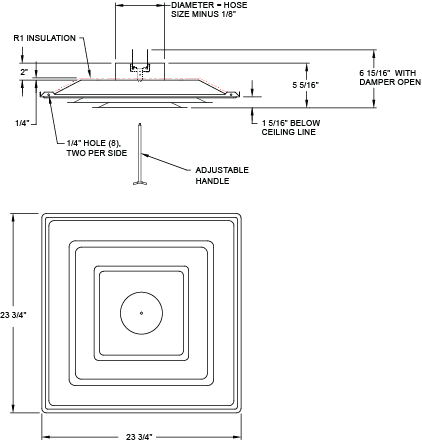

    • DFP + R1 insulation blanket and installed Series 3800 damper
  • Series DFP I6D

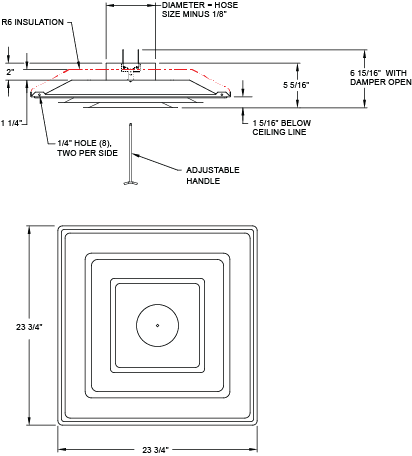

    • DFP + R6 insulation blanket and installed Series 3800 damper

Part #DescriptionCtn QtyList Price Each
DFPNANo collar, No insulation1--
DFPN066" collar, No insulation1--
DFPN088" collar, No insulation1--
DFPN1010" collar, No insulation1--
DFPN1212" collar, No insulation1--
DFPN1414" collar, No insulation1--

DFPNI06DFixed 6" col, no insulation, 3800 damper1--
DFPNI08DFixed 8" col, no insulation, 3800 damper1--
DFPNI10DFixed 10" col, no insulation, 3800 damper1--
DFPNI12DFixed 12" col, no insulation, 3800 damper1--
DFPNI14DFixed 14" col, no insulation, 3800 damper1--

DFPI06D6" col, R1 insulation, 3800 damper1--
DFPI08D8" col. R1 insulation, 3800 damper1--
DFPI10D10" col, R1 insulation, 3800 damper1--
DFPI12D12" col, R1 insulation, 3800 damper1--
DFPI14D14" col, R1 insulation, 3800 damper1--

DFPI606D6" col, R6 insulation, 3800 damper1--
DFPI608D8" col, R6 insulation, 3800 damper1--
DFPI610D10" col, R6 insulation, 3800 damper1--
DFPI612D12" col, R6 insulation, 3800 damper1--
DFPI614D14" col, R6 insulation, 3800 damper1--

DFPIP6ANo collar, R6 fiberglass plenum1--
