FPD

Steel

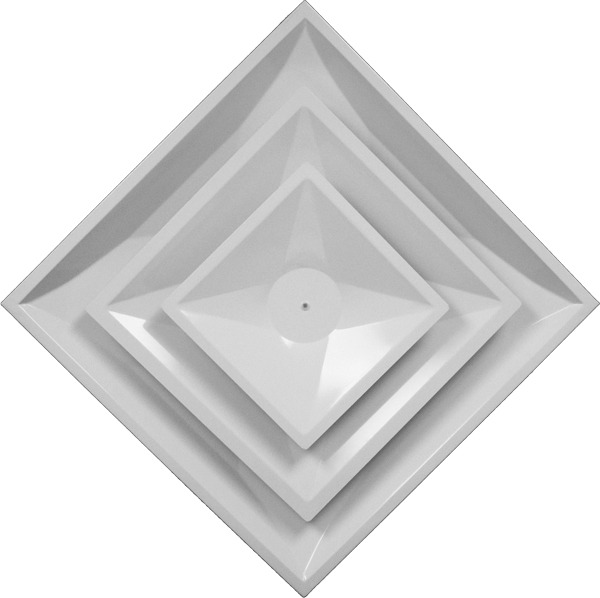

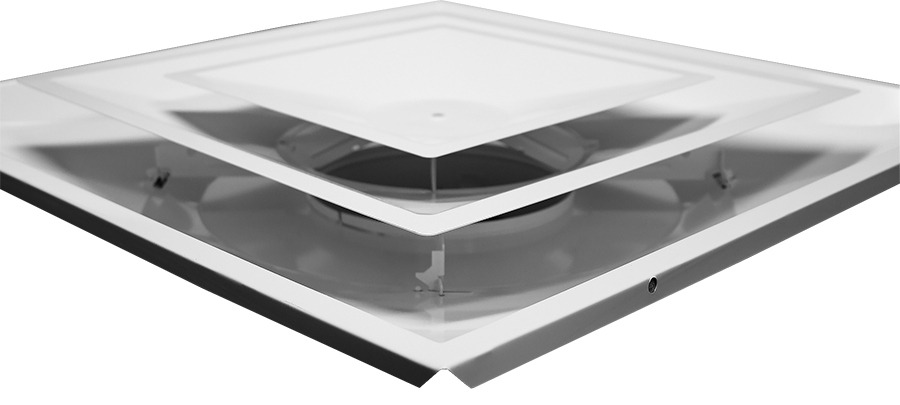

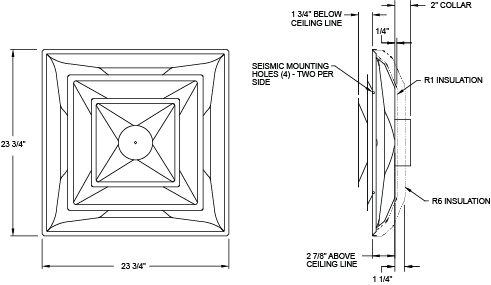

T-bar Diffuser

  • Steel construction
  • 2-tier diffusion, 360° pattern
  • Fixed collar and no collar models

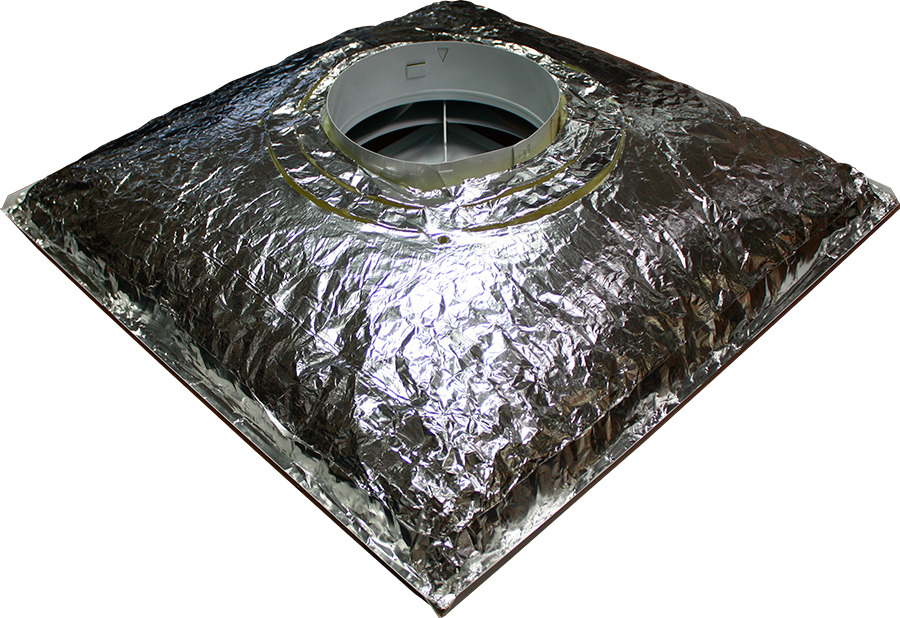

  • R1 Insulation blanket
  • White finish
  • Made in the U.S.A.
  • Packed 1 per carton, 36 per pallet

Associated Series:

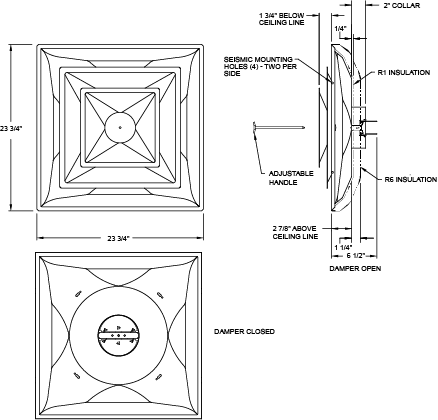

  • Series FPD-38D
    • FPD + installed Series 3800 damper

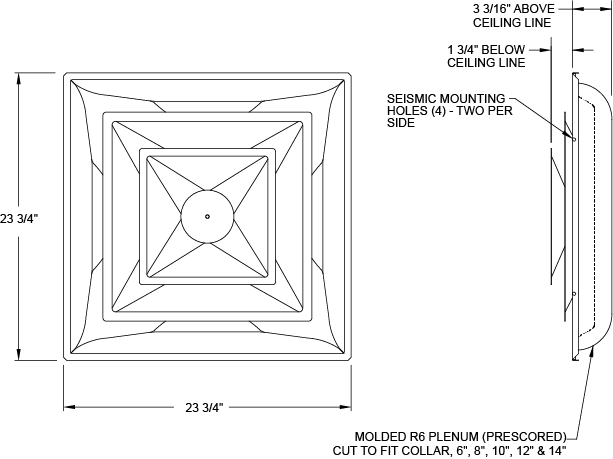

  • Series FPD P6
    • FPD no-collar model + attached R6-rated fiberglass plenum

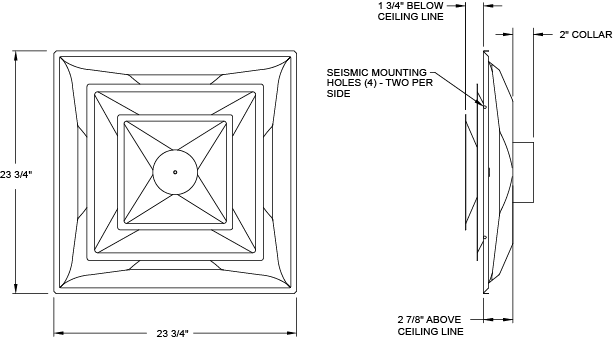

  • Series FPD NI
    • FPD with no insulation

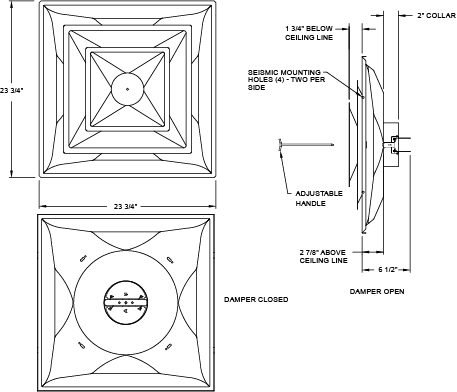

  • Series FPD NI 38D
    • FPD with no insulation + installed Series 3800 damper

Part #DescriptionCtn QtyList Price
FPD A No collar, R1 insulation1--
FPD 06 6" collar, R1 insulation1--
FPD 08 8" collar, R1 insulation1--
FPD 10 10" collar, R1 insulation1--
FPD 12 12" collar, R1 insulation1--

FPD 14 14" collar, R1 insulation1--
FPD A6 No collar, R6 insulation1--
FPD 066 6" collar, R6 insulation1--
FPD 086 8" collar, R6 insulation1--
FPD 106 10" collar, R6 insulation1--
FPD 126 12" collar, R6 insulation1--
FPD 146 14" collar, R6 insulation1--

FPD 06 38D 6" collar, R1 insulation, 38D Collar Installed1--
FPD 08 38D 8" collar, R1 insulation, 38D Collar Installed1--
FPD 10 38D 10" collar, R1 insulation, 38D Collar Installed1--
FPD 12 38D 12" collar, R1 insulation, 38D Collar Installed1--
FPD 14 38D 14" collar, R1 insulation, 38D Collar Installed1--
FPD 066 38D6" collar, R6 insulation, 38D Collar Installed1--
FPD 086 38D8" collar, R6 insulation, 38D Collar Installed1--
FPD 106 38D10" collar, R6 insulation, 38D Collar Installed1--
FPD 126 38D12" collar, R6 insulation, 38D Collar Installed1--
FPD 146 38D14" collar, R6 insulation, 38D Collar Installed1--

FPD ANI„ No Collar, No insulation1--
FPD 06NI„ 6" collar, No insulation1--
FPD 08NI„ 8" collar, No insulation1--
FPD 10NI„ 10" collar, No insulation1--
FPD 12NI„ 12" collar, No insulation1--
FPD 14NI„ 14" collar, No insulation1--

FPD 06NI 38D 6" collar, No insulation, 38D Collar Installed1--
FPD 08NI 38D 8" collar, No insulation, 38D Collar Installed1--
FPD 10NI 38D 10" collar, No insulation, 38D Collar Installed1--
FPD 12NI 38D 12" collar, No insulation, 38D Collar Installed1--
FPD 14NI 38D 14" collar, No insulation, 38D Collar Installed1--

FPDA P6No Collar, R6 Formed Plenum1--
