BG21

Floor, Toe Space, & Baseboard

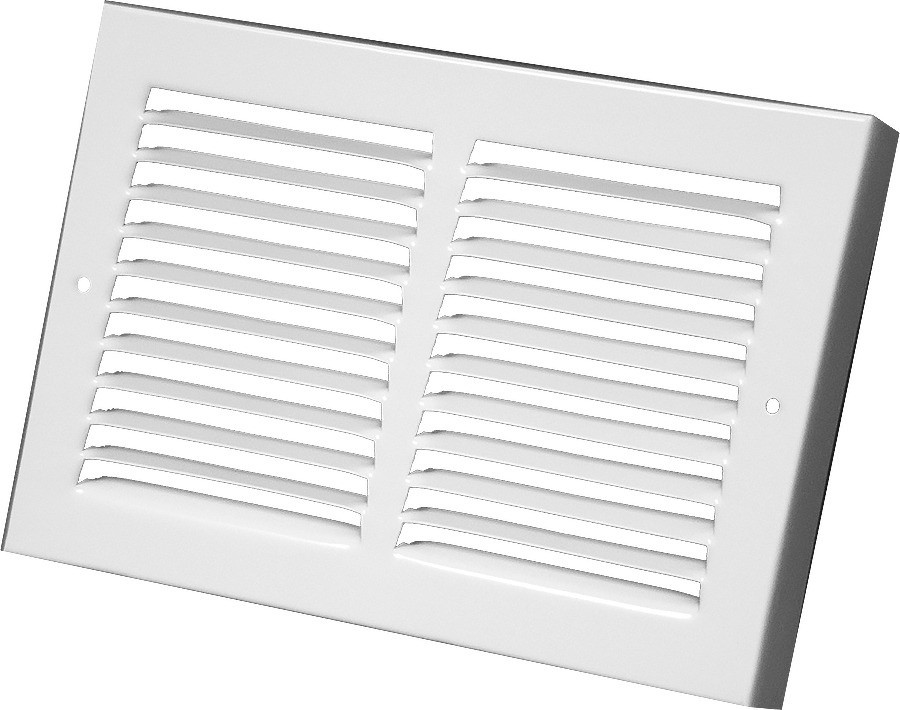

Baseboard Grille

Steel construction
Lanced face
1/2” spaced fins
Sizing: 10”, 12”, 14”, 16”, 20”, 24” 30”, 36” widths
7/8” base extension
White finish
Made in the U.S.A.

Product Details

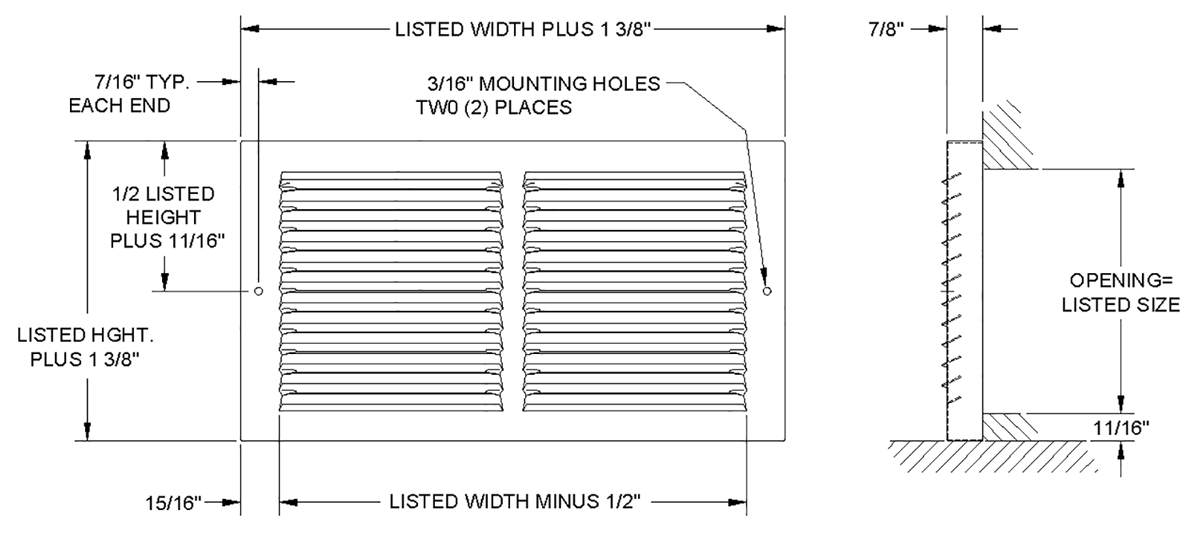

Dimensional Drawings
Performance
Videos
Design Resources
Videos & Manuals

Part #	Description	Ctn Qty	List Price Each
BG21W 1006	10" x 6" White	24	--
BG21W 1206	12" x 6" White	24	--
BG21W 1208	12" x 8" White	24	--
BG21W 1406	14" x 6" White	24	--
BG21B 1406	14" x 6" Brown	24	--
BG21W 1408	14" x 8" White	24	--
BG21W 1410	14" x 10" White	16	--
BG21W 1606	16" x 6" White	5	--
BG21W 1608	16" x 8" White	5	--
BG21W 2006	20" x 6" White	5	--
BG21W 2008	20" x 8" White	5	--
BG21W 2010	20" x 10" White	5	--
BG21W 2406	24" x 6" White	5	--
BG21W 2408	24" x 8" White	5	--
BG21W 2410	24" x 10" White	5	--
BG21W 2414	24" x 14" White	5	--
BG21W 3006	30" x 6" White	5	--
BG21B 3006	30" x 6" Brown	5	--
BG21W 3008	30" x 8" White	5	--
BG21W 3010	30" x 10" White	5	--
BG21W 3012	30" x 12" White	5	--
BG21W 3606	36" x 6" White	5	--
BG21W 3608	36" x 8" White	5	--

Unit Size (in.)	Overall Size (in.)	Face Velocity	300	400	500	600	700	800	900	1000
10 x 6
Ak .29"	11-3/8 x
7-3/8"	Cfm	87	116	145	174	203	232	261	290
		Pt	0.013	0.023	0.037	0.052	0.072	0.081	0.09	0.099
10 x 8
Ak .39"	11-3/8 x
9-3/8"	Cfm	117	156	195	234	273	312	351	390
		Pt	0.012	0.022	0.035	0.05	0.068	0.077	0.086	0.095
12 x 6
Ak .35"	13-3/8 x
7-3/8"	Cfm	105	140	175	210	245	280	315	350
		Pt	0.013	0.022	0.035	0.051	0.07	0.079	0.088	0.097
12 x 8
Ak .47"	13-3/8 x
9-3/8"	Cfm	141	188	235	282	329	376	423	470
		Pt	0.012	0.022	0.034	0.049	0.066	0.075	0.084	0.094
14 x 4 Ak.26	15-3/8 x
5-3/8"	Cfm	78	104	130	156	182	208	234	260
		Pt	0.014	0.024	0.038	0.052	0.073	0.082	0.091	0.101
14 x 6 Ak.42	15-3/8 x
7-3/8"	Cfm	126	168	210	252	294	336	378	420
		Pt	0.012	0.022	0.035	0.05	0.068	0.077	0.086	0.095
14 x 8 Ak.56	15-3/8 x
9-3/8"	Cfm	168	224	280	336	392	448	504	560
		Pt	0.012	0.021	0.033	0.047	0.065	0.074	0.083	0.093
14 x 10
Ak .71"	15-3/8 x
11-3/8"	Cfm	213	284	355	426	497	568	639	710
		Pt	0.011	0.02	0.032	0.045	0.062	0.071	0.08	0.09
16 x 6
Ak .48"	17-3/8 x
7-3/8"	Cfm	144	192	240	288	336	384	432	480
		Pt	0.012	0.021	0.034	0.049	0.066	0.075	0.84	0.094
16 x 8
Ak .65"	17-3/8 x
9-3/8"	Cfm	195	260	325	390	455	520	585	650
		Pt	0.012	0.021	0.033	0.046	0.063	0.072	0.081	0.091
20 x 6
Ak .57"	21-3/8 x
7-3/8"	Cfm	171	228	285	342	399	456	513	570
		Pt	0.012	0.021	0.033	0.047	0.064	0.073	0.081	0.091
20 x 8
Ak .79"	21-3/8 x
9-3/8"	Cfm	237	316	395	474	553	632	711	790
		Pt	0.011	0.02	0.031	0.044	0.059	0.068	0.077	0.086
24 x 6
Ak .70"	25-3/8 x
7-3/8"	Cfm	210	280	350	420	490	560	630	700
		Pt	0.011	0.02	0.032	0.045	0.062	0.071	0.08	0.09
24 x 8
Ak .95"	25-3/8 x
8-3/8"	Cfm	285	380	475	570	665	760	855	950
		Pt	0.011	0.02	0.031	0.044	0.059	0.068	0.077	0.087
24 x 10
Ak 1.19"	25-3/8 x
11-3/8"	Cfm	357	476	595	714	833	952	1071	1190
		Pt	0.011	0.018	0.029	0.041	0.056	0.065	0.074	0.084
30 x 6
Ak .86"	31-3/8 x
7-3/8"	Cfm	258	344	430	516	602	688	774	860
		Pt	0.011	0.02	0.031	0.044	0.06	0.069	0.078	0.088
30 x 8
Ak 1.16"	31-3/8 x
9-3/8"	Cfm	348	464	580	696	812	928	1044	1160
		Pt	0.011	0.019	0.03	0.042	0.057	0.066	0.075	0.084
30 x 10
Ak 1.47"	31-3/8 x
11-3/8"	Cfm	441	588	735	882	1029	1176	1323	1470
		Pt	0.01	0.018	0.029	0.041	0.055	0.064	0.073	0.083
30 x 12
Ak 1.77"	31-3/8 x
13-3/8"	Cfm	531	708	885	1062	1239	1416	1593	1770
		Pt	0.01	0.018	0.028	0.04	0.054	0.063	0.072	0.082
36 x 6
Ak 1.05"	37-3/8 x
7-3/8"	Cfm	315	420	525	630	735	840	945	1050
		Pt	0.011	0.019	0.03	0.043	0.059	0.068	0.077	0.087
36 x 8
Ak 1.42"	37-3/8 x
9-3/8"	Cfm	426	568	710	852	994	1136	1278	1420
		Pt	0.01	0.018	0.029	0.041	0.056	0.065	0.074	0.084
