BHV

Steel

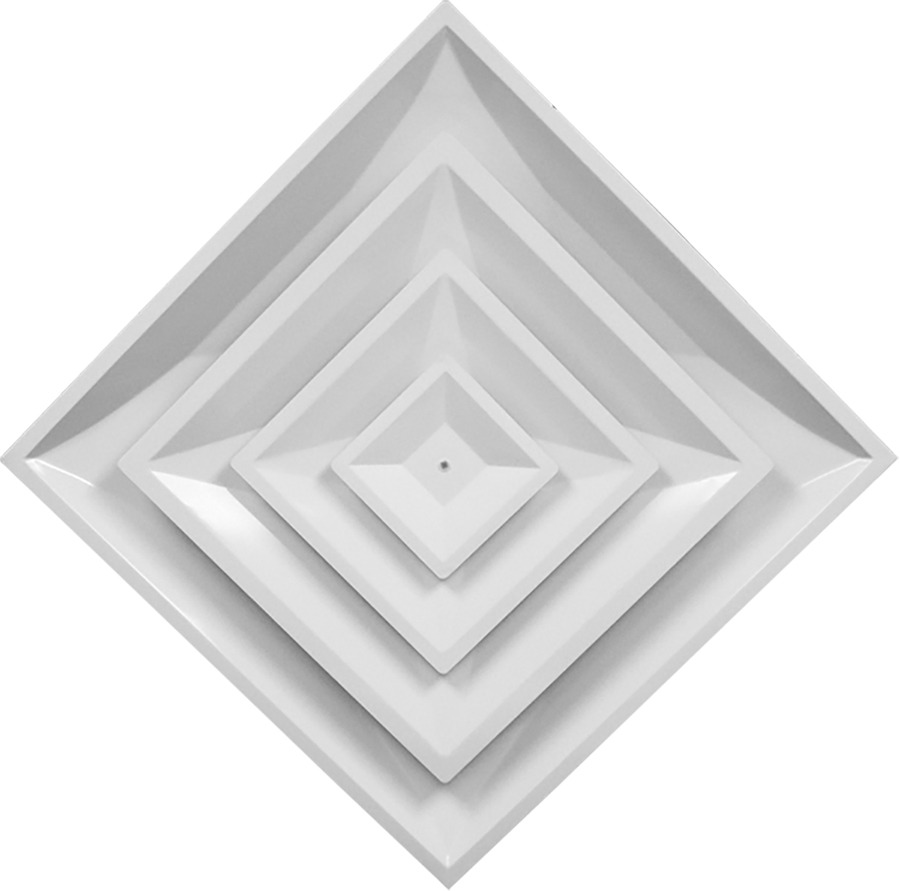

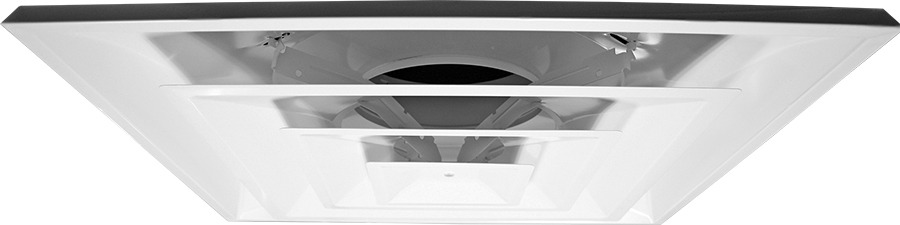

T-bar Diffuser (high volume)

  • Steel construction
  • 3-tier diffusion, 360° pattern
  • Fixed collar and no collar models
  • No insulation or R-6 rated fiberglass plenum
  • White finish
  • Made in the U.S.A.
  • Packed 1 per carton, 36 per pallet

Associated Series:

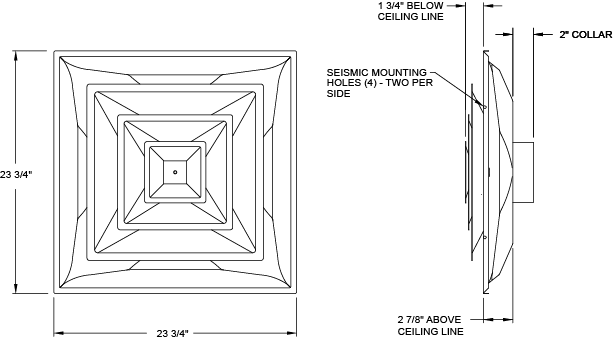

  • Series BHV NI
    • BHV with no insulation and fixed collar

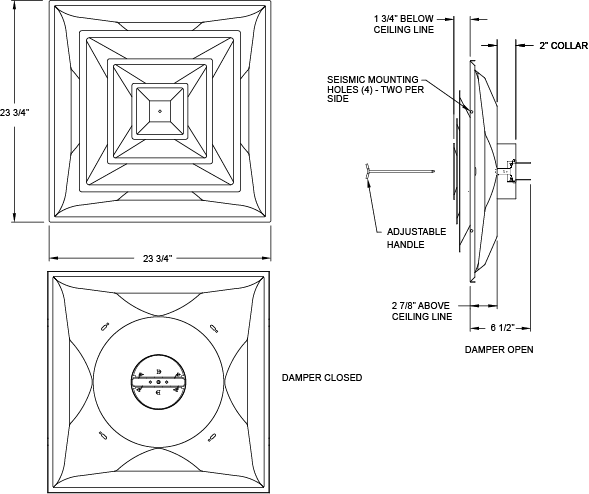

  • Series BHV NI-38D
    • BHV with no insulation, fixed collar, + installed Series 3800 damper

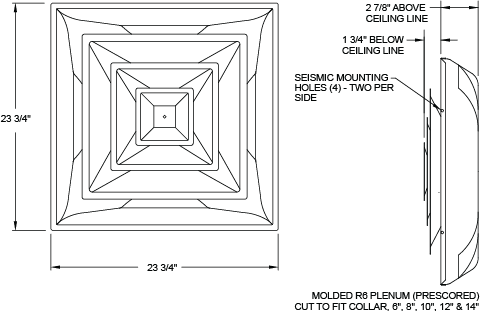

  • Series BHV P6
    • BHVI no-collar model + attached R6-rated fiberglass plenum

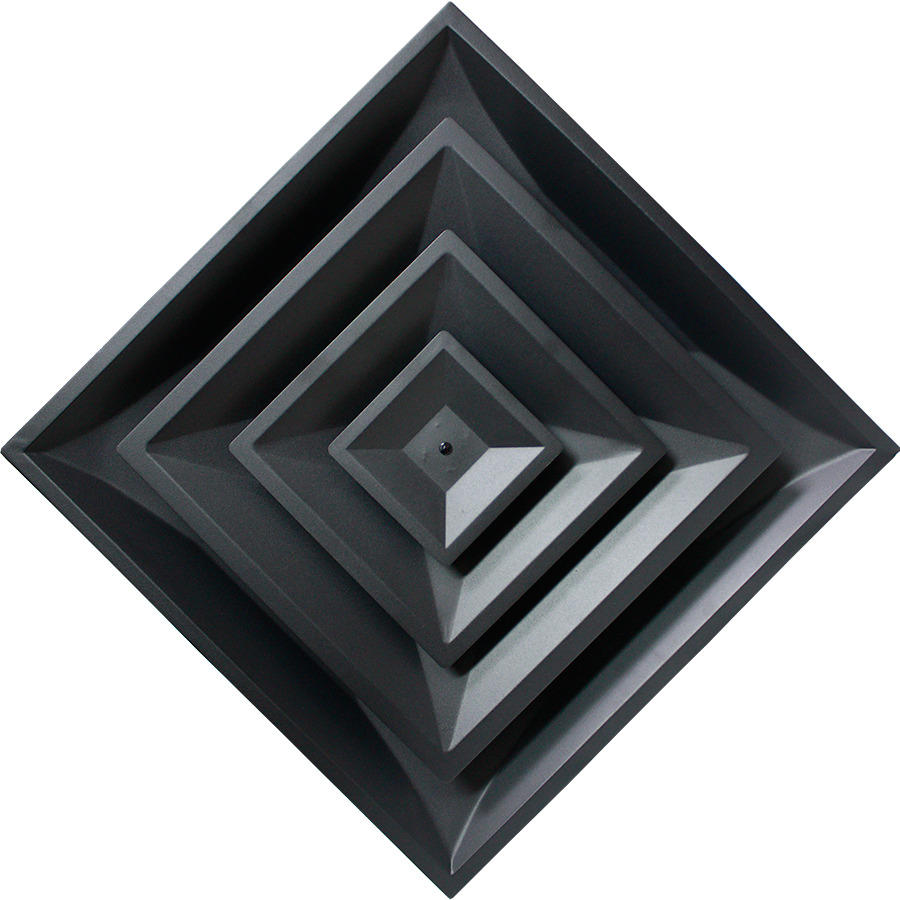

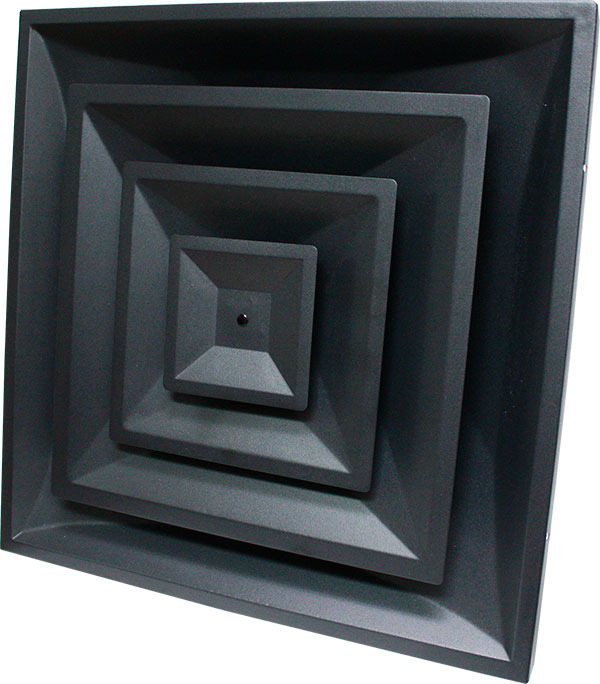

  • Series BHVANIBL
    • BHV no-collar model, no insulation, and in BLACK powdercoat finish

Part #DescriptionCtn QtyList Price
BHV 06NI„ Fixed 6" collar, No insulation1--
BHV 08NI„ Fixed 8" collar, No insulation1--
BHV 10NI„ Fixed 10" collar, No insulation1--
BHV 12NI„ Fixed 12" collar, No insulation1--
BHV 14NI„ Fixed 14" collar, No insulation1--

BHV 06NI-38D Fixed 6" collar, No insulation, 38D Installed1--
BHV 08NI-38D Fixed 8" collar, No insulation, 38D Installed1--
BHV 10NI-38D Fixed 10" collar, No insulation, 38D Installed1--
BHV 12NI-38D Fixed 12" collar, No insulation, 38D Installed1--
BHV 14NI-38D Fixed 14" collar, No insulation, 38D Installed1--

BHV AP6 No collar, R6 Formed Plenum1--

BHV 06P6-38D Fixed 6" collar, R6 Formed Plenum, 3800 Damper1--
BHV 08P6-38D Fixed 8" collar, R6 Formed Plenum, 3800 Damper1--
BHV 10P6-38D Fixed 10" collar, R6 Formed Plenum, 3800 Damper1--
BHV 12P6-38D Fixed 12" collar, R6 Formed Plenum, 3800 Damper1--
BHV 14P6-38D Fixed 14" collar, R6 Formed Plenum, 3800 Damper1--
