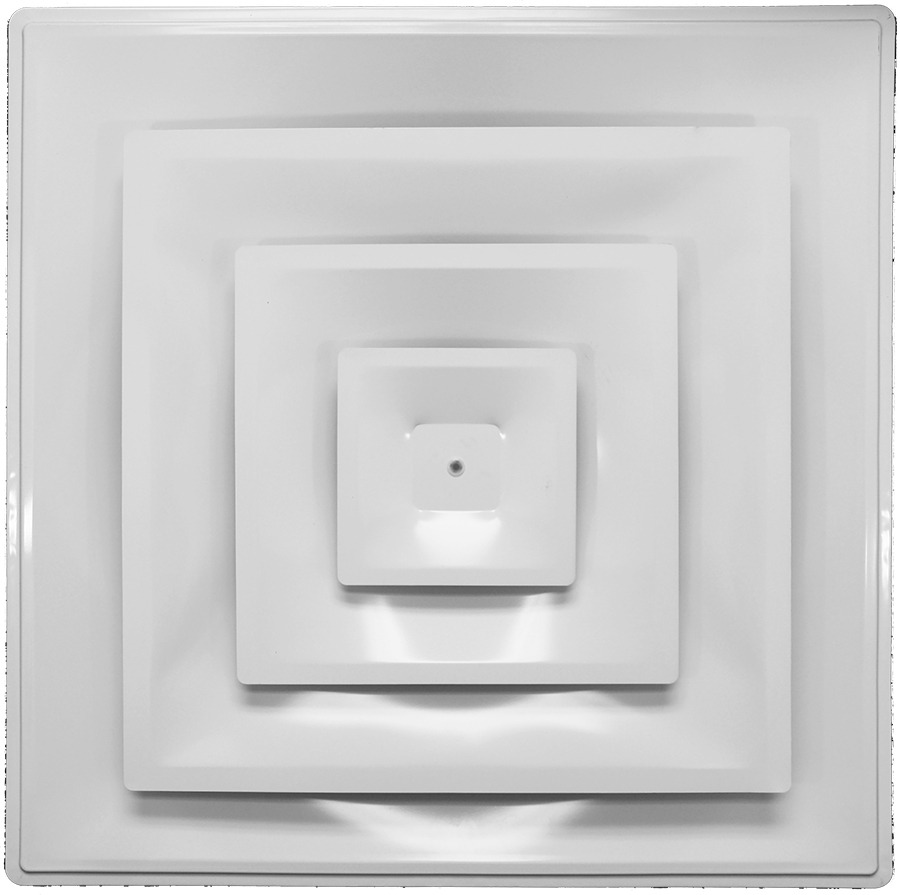

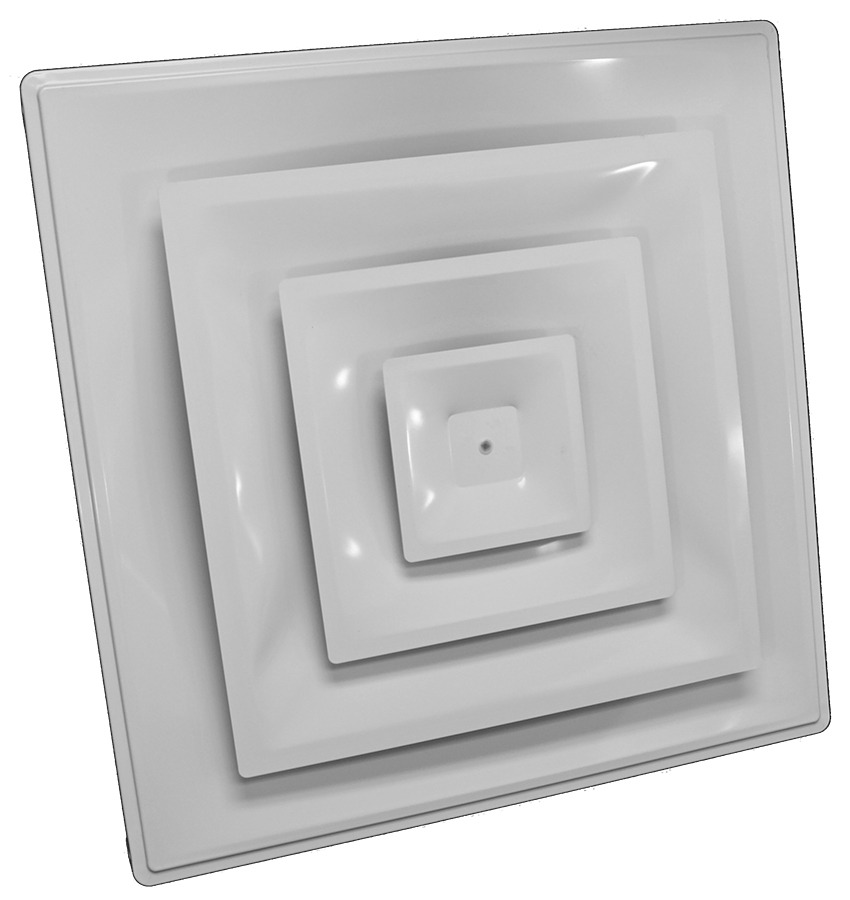

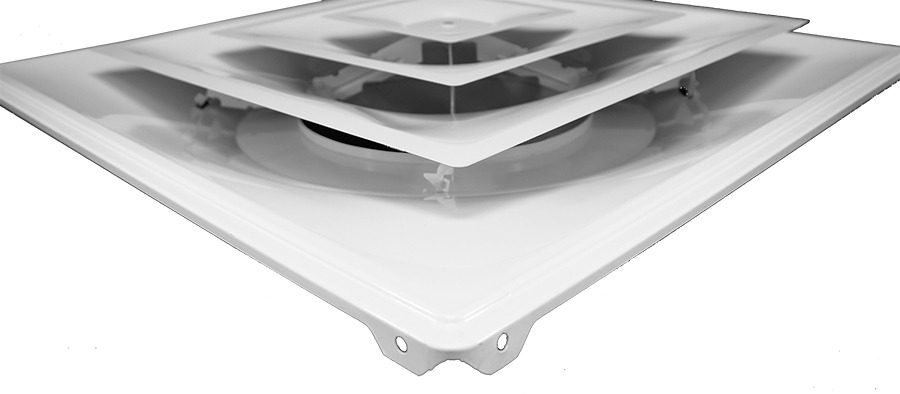

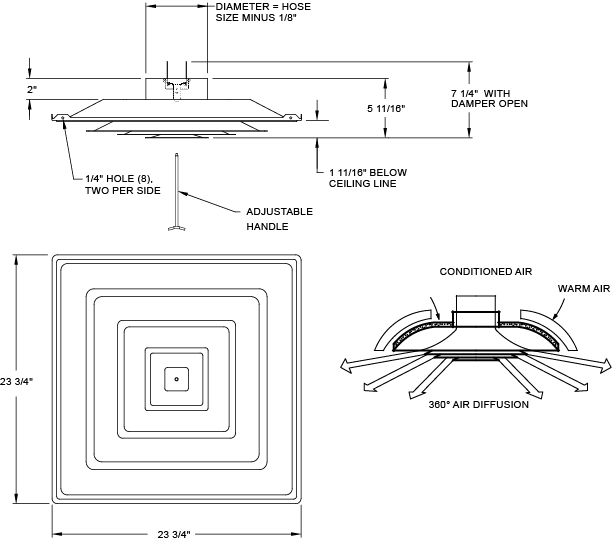

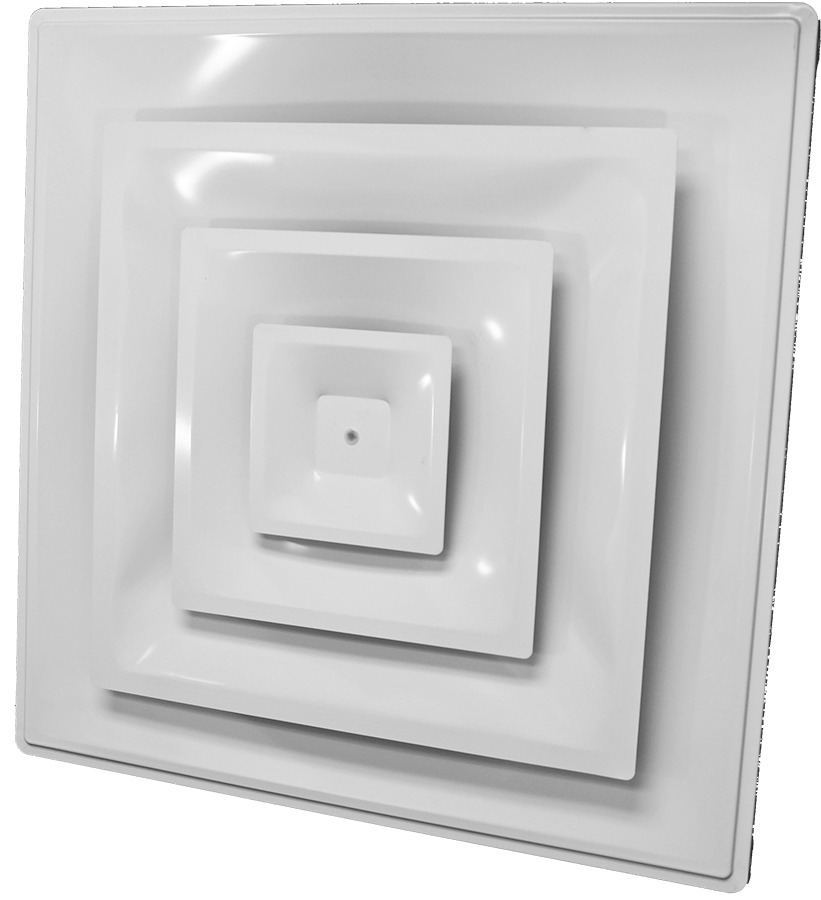

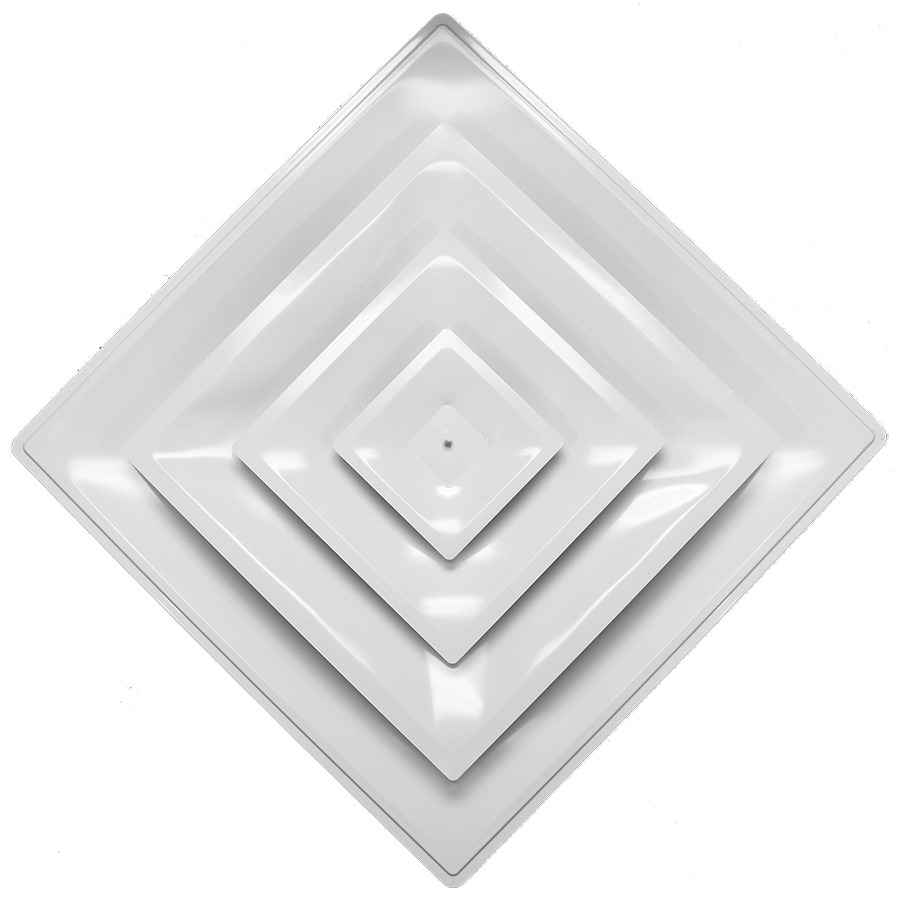

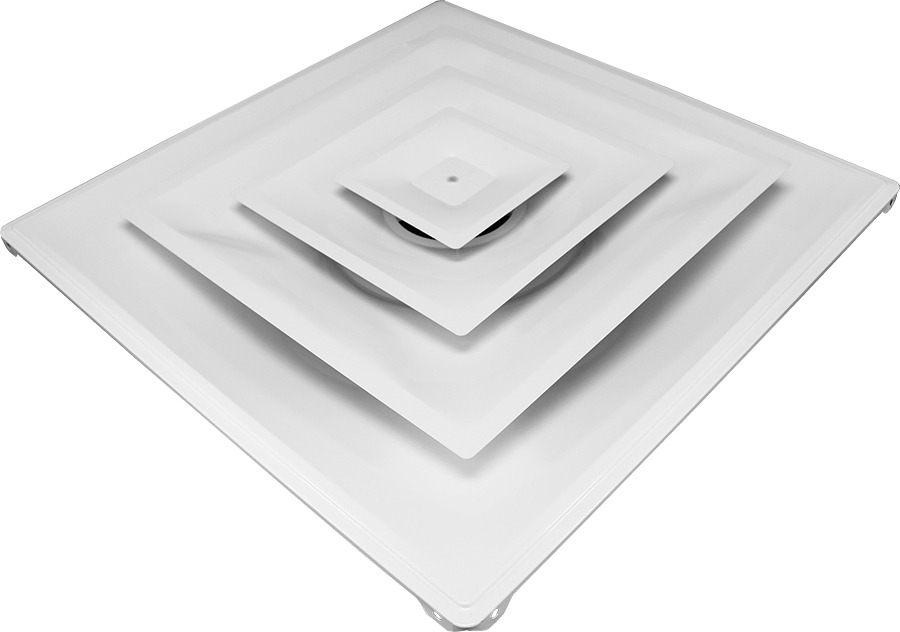

DBH

Steel

T-bar Diffuser

  • A design alternative to our standard Series BHV diffuser
  • Steel construction
  • 3-tier diffusion, 360° pattern
  • Fixed collar and no collar models
  • No insulation or R-6 fiberglass plenum
  • White finish
  • Made in the U.S.A.
  • Packed 1 per carton, 60 per pallet

Associated Series:

  • Series DBH P6
    • DBH + R6-rated fiberglass plenum
  • Series DBH D
    • DBH + installed Series 3800 damper

Part #DescriptionCtn QtyList Price Each
DBHNANo collar, No insulation1--
DBHN066" collar, No insulation1--
DBHN088" collar, No insulation1--
DBHN1010" collar, No insulation1--
DBHN1212" collar, No insulation1--
DBHN1414" collar, No insulation1--

DBHN06DFixed 6" collar, no insulation, 3800 damper1--
DBHN08DFixed 8" collar, no insulation, 3800 damper1--
DBHN10DFixed 10" collar, no insulation, 3800 damper1--
DBHN12DFixed 12" collar, no insulation, 3800 damper1--
DBHN14DFixed 14" collar, no insulation, 3800 damper1--

DBHIP6ANo collar, R6 fiberglass plenum1--
