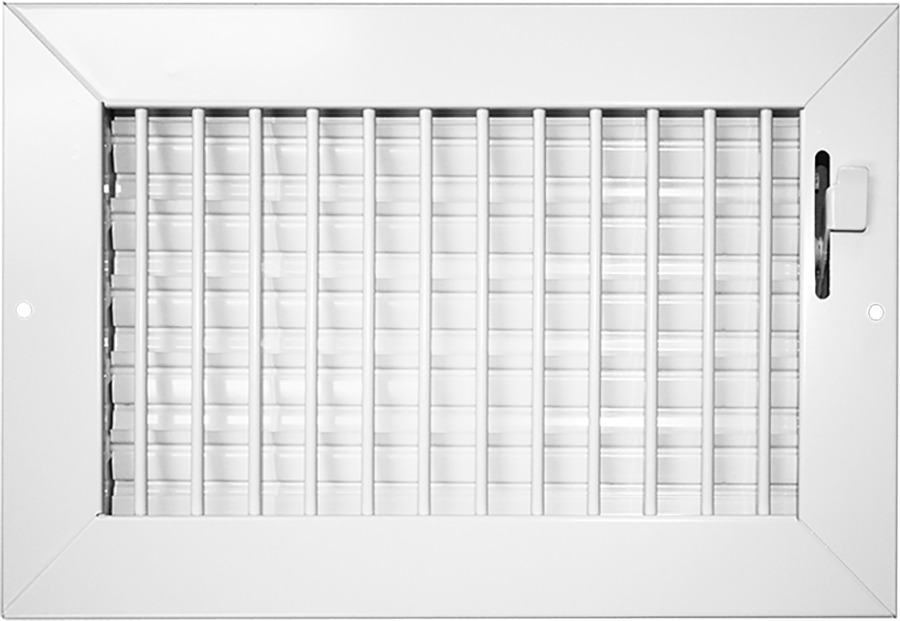

Sidewall/Ceiling Supply Diffuser

Appearance Note: Any models with a dimension larger than 16” require two or more damper boxes and associated reinforcement face bars.

Unit Size (in.)	Overall Size (in.)	Face Velocity	300	400	500	600	700	800	900	1000
		Pressure Loss	0.006	0.010	0.016	0.022	0.031	0.040	0.050	0.062
6 x 6
Ak .139"	7-3/8 x 7-3/8	Cfm	42	56	69	83	97	111	125	139
		Throw	5	6	7	9	10	12	13	15
8 x 4
Ak .118"	9-3/8 x 5-3/8	Cfm	35	47	59	71	83	94	106	118
		Throw	4	5	7	8	9	11	12	13
8 x 6
Ak .188"	9-3/8 x 7-3/8	Cfm	56	75	94	113	131	150	169	188
		Throw	5	7	8	10	12	14	15	17
8 x 8
Ak .257"	9-3/8 x 9-3/8	Cfm	77	103	128	154	180	206	231	257
		Throw	6	7	9	11	13	15	17	19
10 x 4
Ak .146"	11-3/8 x 5-3/8	Cfm	44	58	73	88	102	117	131	146
		Throw	5	6	8	9	11	12	13	14
10 x 6
Ak .236"	11-3/8 x 7-3/8	Cfm	71	94	118	142	165	189	213	236
		Throw	6	8	9	11	13	15	17	19
10 x 8
Ak .326"	11-3/8 x 9-3/8	Cfm	98	131	163	196	228	261	294	326
		Throw	7	8	10	12	14	16	17	21
10 x 10
Ak .417"	11-3/8 x 11-3/8	Cfm	125	167	208	250	292	333	375	417
		Throw	7	9	12	14	16	18	20	23
12 x 4
Ak .181"	12-3/8 x 5-3/8	Cfm	54	72	90	108	126	144	163	181
		Throw	5	7	8	10	12	14	15	17
12 x 6
Ak .285"	13-3/8 x 7-3/8	Cfm	85	114	142	171	199	228	256	285
		Throw	7	8	10	12	15	17	19	21
12 x 8
Ak .389"	13-3/8 x 9-3/8	Cfm	117	156	194	233	272	311	350	389
		Throw	7	9	11	13	18	17	19	22
12 x 12
Ak .611"	13-3/8 x
13-3/8"	Cfm	183	244	306	367	428	489	550	611
		Throw	9	11	14	17	20	22	25	29
14 x 4
Ak .208"	15-3/8 x 5-3/8	Cfm	63	83	104	125	146	167	188	208
		Throw	5	7	9	11	13	15	17	18
14 x 6
Ak .313"	15-3/8 x 7-3/8	Cfm	94	125	156	188	219	250	281	313
		Throw	7	8	11	13	16	18	20	23
14 x 8
Ak .458"	15-3/8 x 9-3/8	Cfm	138	183	229	275	321	367	413	458
		Throw	8	9	12	14	17	19	21	24
14 x 14
Ak .840"	15-3/8 x
15-3/8"	Cfm	252	336	420	504	588	672	756	840
		Throw	9	15	19	23	27	31	34	38
See "Catalog Page pdf for important NC data.
