RVML

Steel

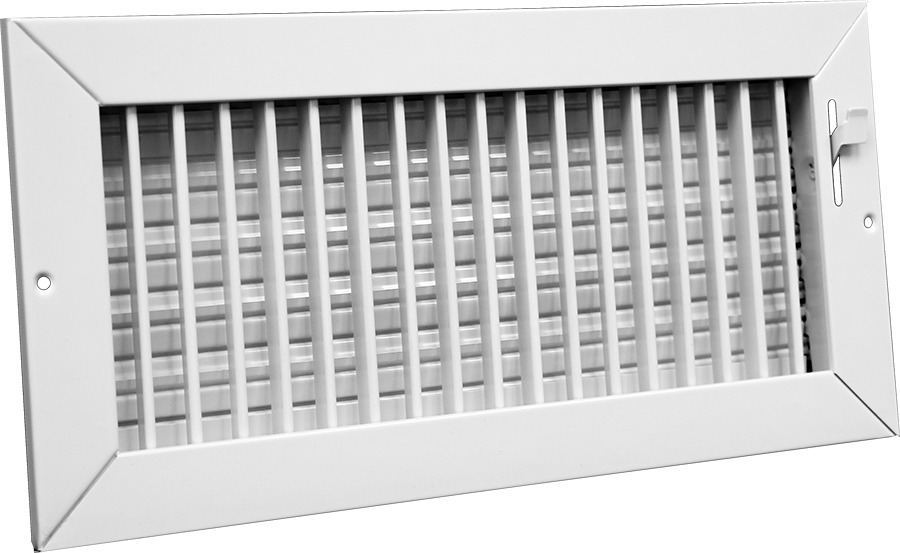

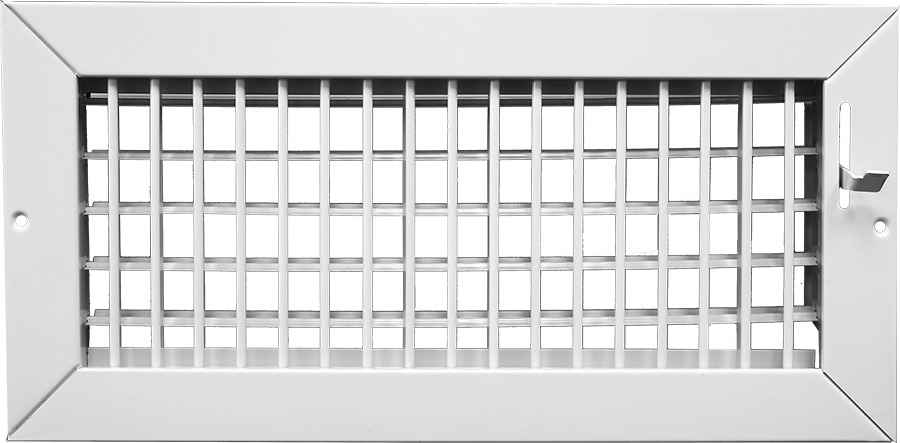

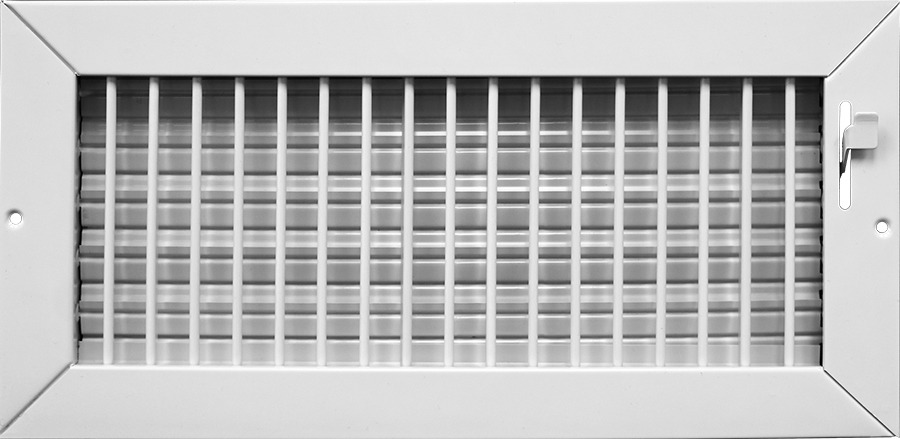

Sidewall/Ceiling Supply Diffuser

  • Adjustable, vertical, roll-form face bars
  • 3/4" bar spacing for easy adjustment
  • Single deflection

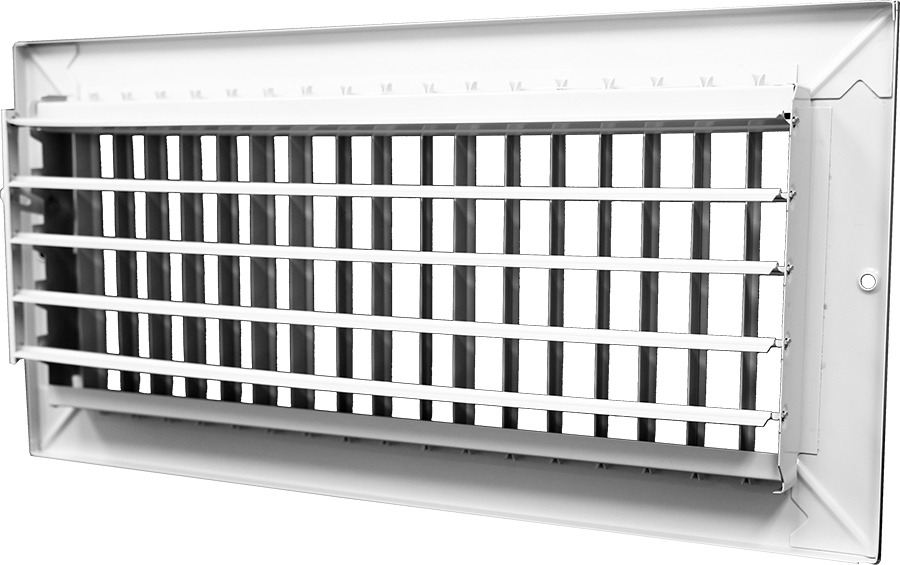

  • Multi-shutter damper
  • Steel construction
  • White finish
  • Made in the U.S.A.

Aluminum alternative also available.

Lower priced import model also available.

Appearance Note: Any models with a dimension larger than 16” require two or more damper boxes and associated reinforcement face bars.

Part #DescriptionCtn QtyList Price Each
RVMLW 06046" x 4" White24--
RVMLW 06066" x 6" White24--
RVMLW 08048" x 4" White24--
RVMLW 08068" x 6" White24--
RVMLW 08088" x 8" White16--
RVMLW 100410" x 4" White24--
RVMLW 100510" x 5" White24--
RVMLW 100610" x 6" White24--
RVMLW 100810" x 8" White16--
RVMLW 101010" x 10" White16--
RVMLW 120412" x 4" White24--
RVMLW 120512" x 5" White24--
RVMLW 120612" x 6" White24--
RVMLW 120812" x 8" White16--
RVMLW 121012" x 10" White16--
RVMLW 121212" x 12" White1--
RVMLW 140414" x 4" White24--
RVMLW 140614" x 6" White24--
RVMLW 140814" x 8" White16--
RVMLW 141014" x 10" White1--
RVMLW 141214" x 12" White1--
RVMLW 141414" x 14" White1--
RVMLW 160416" x 4" White8--
RVMLW 160616" x 6" White8--
RVMLW 160816" x 8" White8--
RVMLW 161016" x 10" White1--
RVMLW 161216" x 12" White1--
RVMLW 161616" x 16" White1--
RVMLW 180418" x 4" White8--
RVMLW 180618" x 6" White8--
RVMLW 180818" x 8" White8--
RVMLW 181018" x 10" White1--
RVMLW 181218" x 12" White1--
RVMLW 181618" x 16" White1--
RVMLW 181818" x 18" White1--
RVMLW 200420" x 4" White8--
RVMLW 200620" x 6" White8--
RVMLW 200820" x 8" White8--
RVMLW 201020" x 10" White1--
RVMLW 201220" x 12" White1--
RVMLW 201420" x 14" White1--
RVMLW 201620" x 16" White1--
RVMLW 201820" x 18" White1--
RVMLW 202020" x 20" White1--
RVMLW 240424" x 4" White8--
RVMLW 240624" x 6" White8--
RVMLW 240824" x 8" White8--
RVMLW 241024" x 10" White1--
RVMLW 241224" x 12" White1--
RVMLW 241424" x 14" White1--
RVMLW 241624" x 16" White1--
RVMLW 241824" x 18" White1--
RVMLW 242424" x 24" White1--
RVMLW 300630" x 6" White8--
RVMLW 300830" x 8" White8--
RVMLW 301030" x 10" White1--
RVMLW 301230" x 12" White1--
RVMLW 301430" x 14" White1--
RVMLW 301630" x 16" White1--
RVMLW 301830" x 18" White1--
RVMLW 360636" x 6" White1--
RVMLW 361036" x 10" White1--
RVMLW 361236" x 12" White1--
RVMLW 361436" x 14" White1--
