HVS

Steel

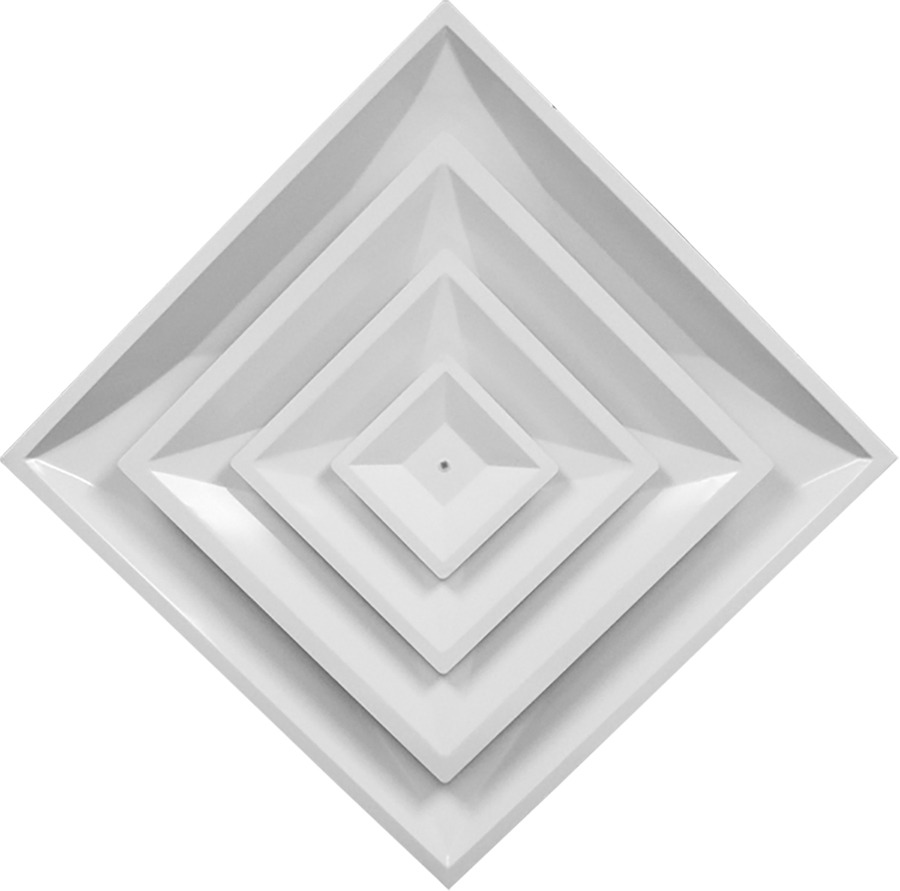

T-bar Diffuser (high volume)

  • Steel construction
  • 3-tier diffusion, 360° pattern
  • Fixed collar and no collar models
  • R1 insulation blanket
  • White finish
  • Made in the U.S.A.
  • Packed 1 per carton, 36 per pallet

Associated Series:

  • Series HVS-38D
    • HVS + installed Series 3800 damper

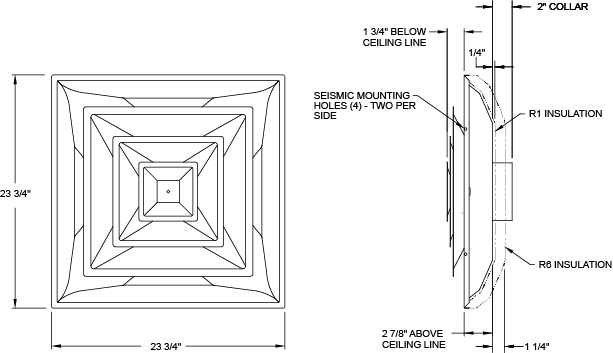

  • Series HVS 6
    • HVS with R6 insulation blanket

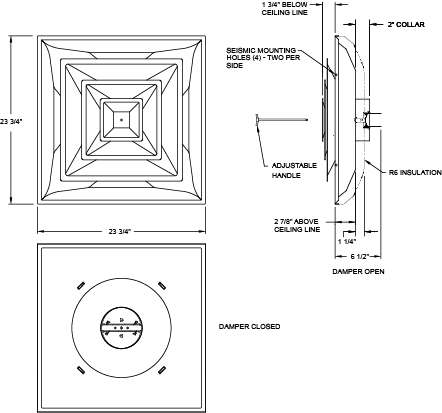

  • Series HVS 6-38D
    • HVS + installed Series 3800 damper and R6 insulation blanket

Part #DescriptionCtn QtyList Price Each
HVS066" Collar1--
HVS06-38D6" Collar w/ 3800 Damper Installed1--
HVS066Fixed 6" collar, R6 Insulation1--
HVS066-38DFixed 6" col, R6 Ins, 38 Damp. Installed1--
HVS088" Collar1--
HVS08-38D8" Collar w/ 3800 Damper Installed1--
HVS086Fixed 8" collar, R6 Insulation1--
HVS086-38DFixed 8" col, R6 Ins, 38 Damp. Installed1--
HVS1010" Collar1--
HVS10-38D10" Collar w/ 3800 Damper Installed1--
HVS106Fixed 10" collar,R6 Insulation1--
HVS106-38DFixed 10" col, R6 Ins, 38 Damp. Installed1--
HVS1212" Collar1--
HVS12-38D12" Collar w/ 3800 Damper Installed1--
HVS126Fixed 12" collar, R6 Insulation1--
HVS126-38DFixed 12" col, R6 Ins, 38 Damp. Installed1--
HVS1414" Collar1--
HVS14-38D14" Collar w/ 3800 Damper Installed1--
HVS146 Fixed 14" collar, R6 Insulation1--
HVS146-38DFixed 14" col, R6 Ins, 38 Damp. Installed1--
HVSANo collar1--
HVSA6No collar, R6 insulation1--
