XRVML

Products

Have a question? Contact Product Support

XRVML

Steel

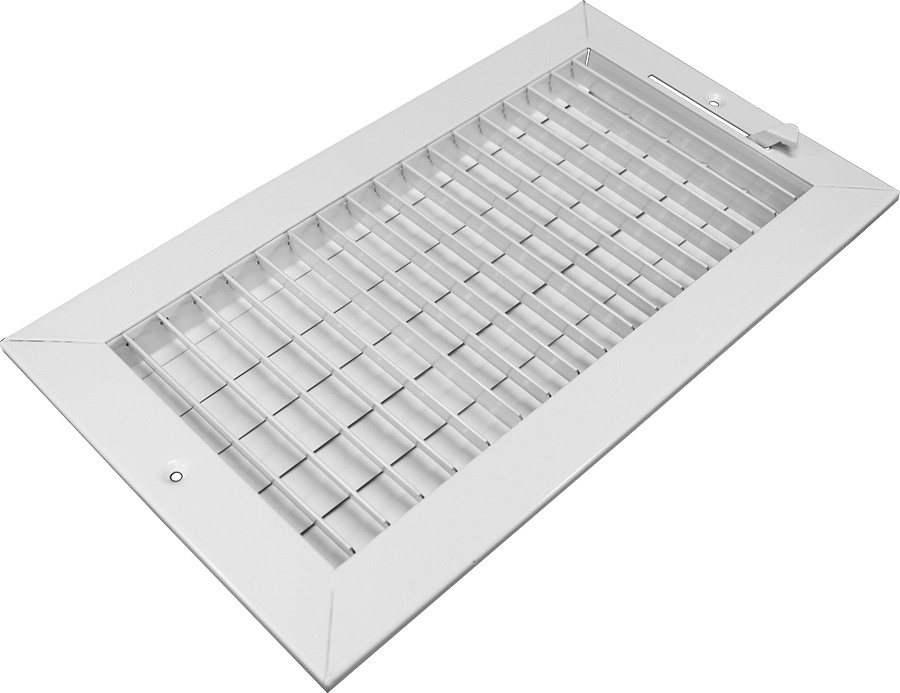

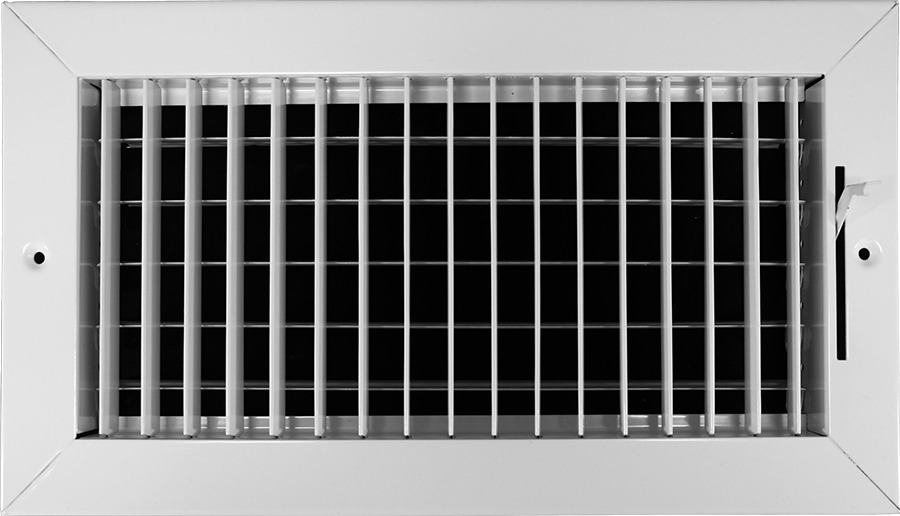

Sidewall/Ceiling Supply Diffuser

  • Adjustable, vertical, roll-form face bars
  • 3/4" bar spacing for easy adjustment
  • Single deflection
  • Multi-shutter damper
  • Steel construction
  • White finish
  • Imported (cost-effective alternative to our domestic line)

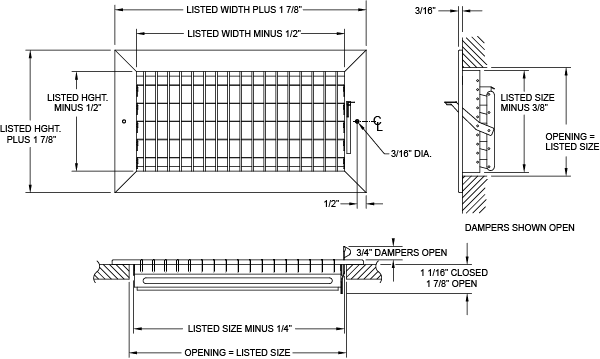

Submittal Sheet: XRVML

Part #DescriptionCtn QtyListPrice

XRVMLW 06066" x 6" White24--
XRVMLW 08048" x 4" White24--
XRVMLW 08088" x 8" White16--
XRVMLW 100410" x 4" White24--
XRVMLW 100610" x 6" White24--
XRVMLW 100810" x 8" White16--
XRVMLW 101010" x 10" White16--
XRVMLW 120412" x 4" White24--
XRVMLW 120612" x 6" White24--
XRVMLW 120812" x 8" White16--
XRVMLW 121012" x 10" White16--
XRVMLW 121212" x 12" White1--
XRVMLW 140414" x 4" White24--
XRVMLW 140614" x 6" White24--
XRVMLW 140814" x 8" White16--
XRVMLW 160416" x 4" White8--
XRVMLW 160616" x 6" White8--
XRVMLW 160816" x 8" White8--
XRVMLW 180618" x 6" White8--
XRVMLW 180818" x 8" White8--
XRVMLW 200820" x 8" White8--
