22 & A22

Products

Have a question? Contact Product Support

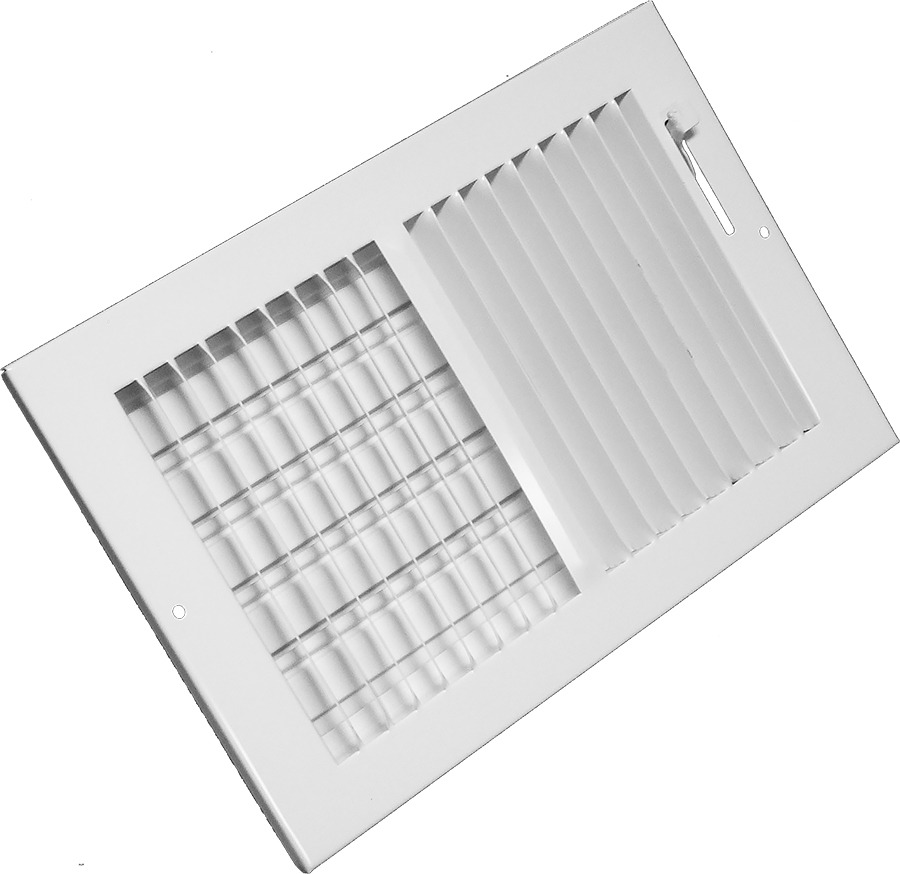

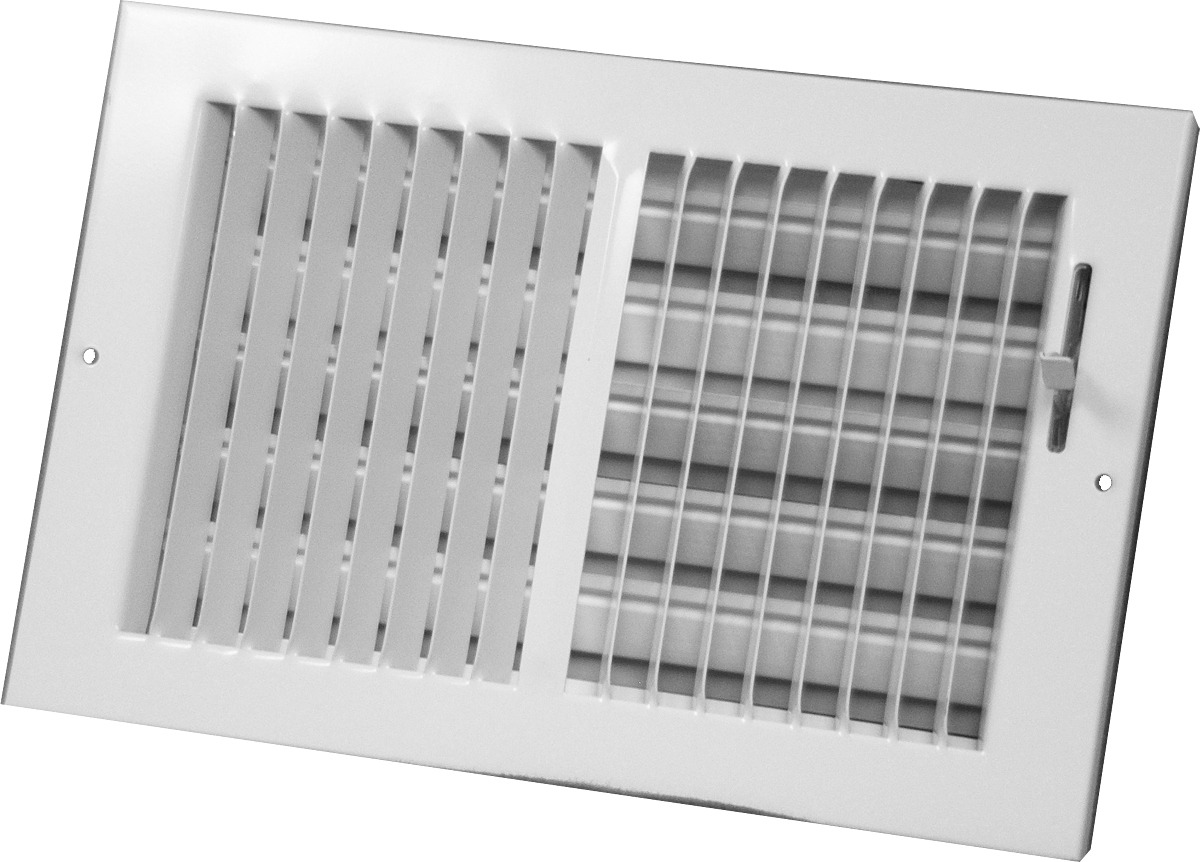

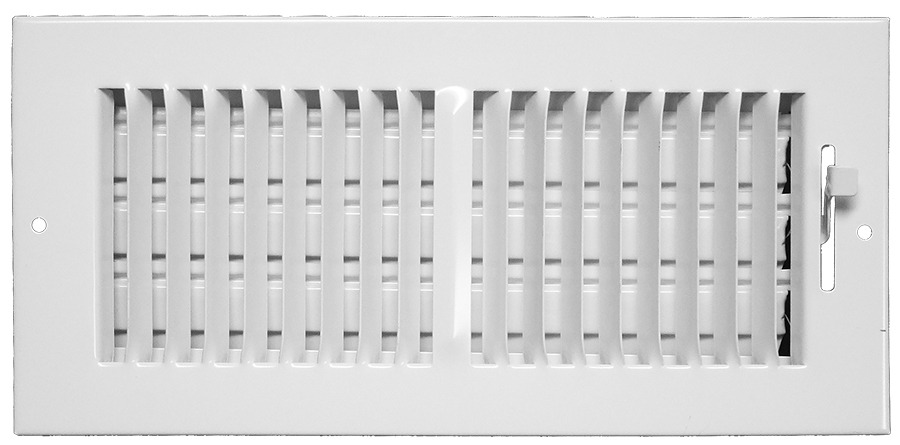

22 & A22

Sidewall or Ceiling

Sidewall/Ceiling Register (2-way)



  • Lanced face
  • Multi-shutter damper
  • 2-way diffusion
  • 1/2” spaced fins
  • Steel construction (22)
  • Aluminum construction (A22)
  • White finish
  • Made in the U.S.A.

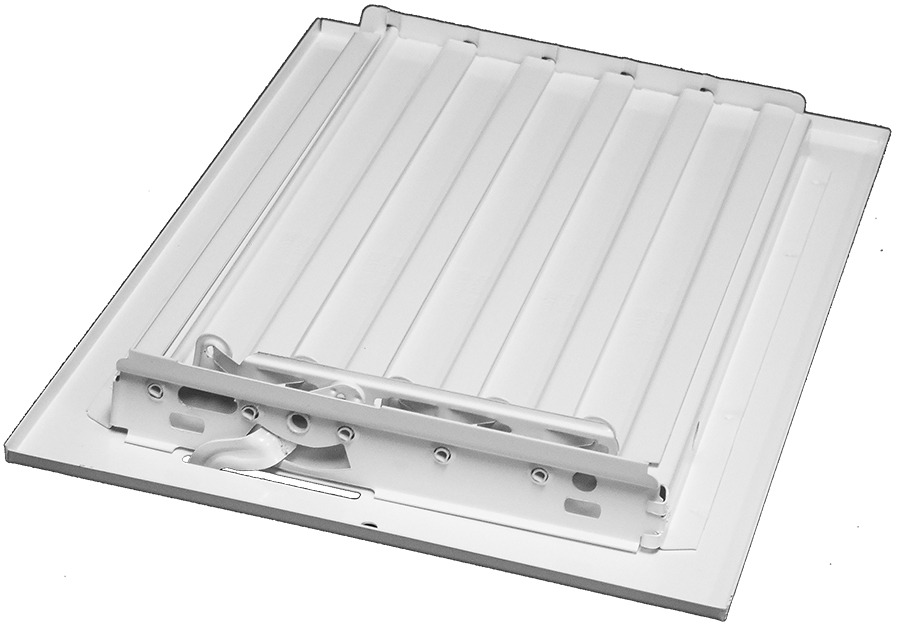

Appearance Note: Larger sizes of this product can require two or more damper boxes, with associated actuation levers through the product face.

Part #DescriptionCtn QtyList Price Each
22W 06046" x 4" White24--
22W 06066" x 6" White24--
22W 08048" x 4" White24--
22W 08068" x 6" White24--
22W 08088" x 8" White16--
22W 100410" x 4" White24--
22W 100510" x 5" White24--
22W 100610" x 6" White24--
22W 100810" x 8" White16--
22W 101010" x 10" White16--
22W 120412" x 4" White24--
22W 120512" x 5" White24--
22W 120612" x 6" White24--
22W 120812" x 8" White16--
22W 121212" x 12" White1--
22W 140414" x 4" White24--
22W 140614" x 6" White24--
22W 140814" x 8" White16--
22W 160616" x 6" White8--
22W 160816" x 8" White8--
22W 180618" x 6" White8--
22W 180818" x 8" White8--
22W 200620" x 6" White8--
22W 200820" x 8" White8--
22W 240624" x 6" White8--
22W 240824" x 8" White8--


A22W 08048" x 4" White24--
A22W 08068" x 6" White24--
A22W 100410" x 4" White24--
A22W 100610" x 6" White24--
A22W 100810" x 8" White16--
A22W 120412" x 4" White24--
A22W 120612" x 6" White24--
A22W 140614" x 6" White24--
A22W 140814" x 8" White16--
