SACB3 & AACB3

Sidewall or Ceiling

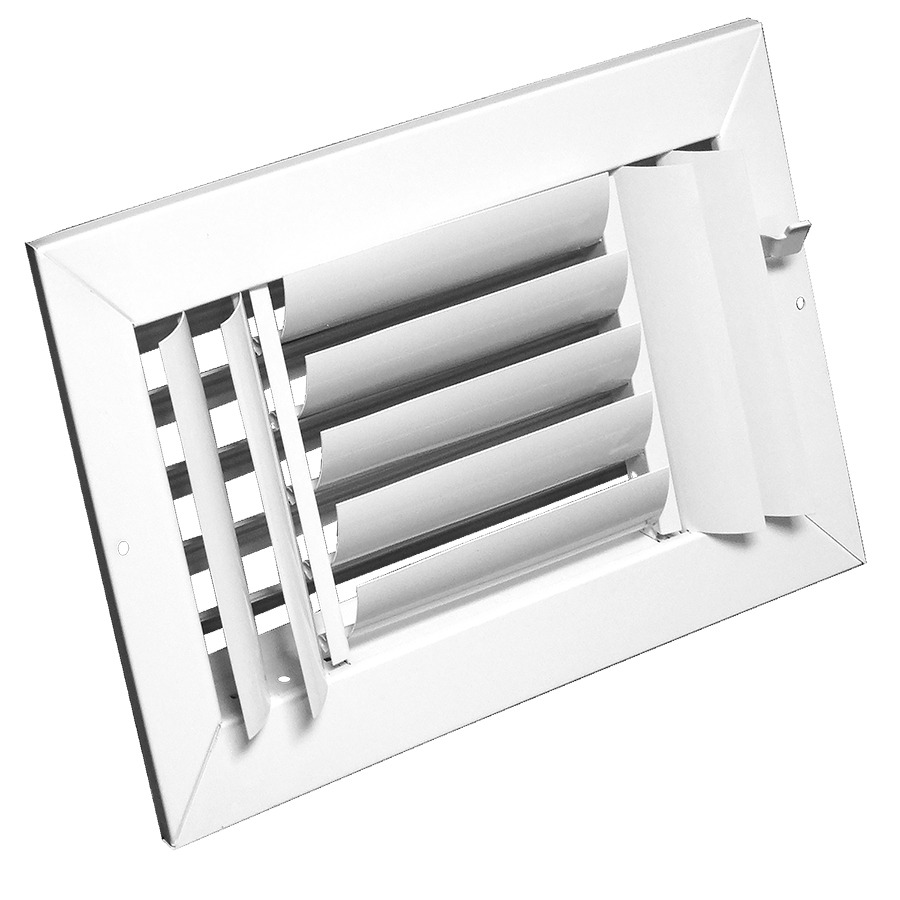

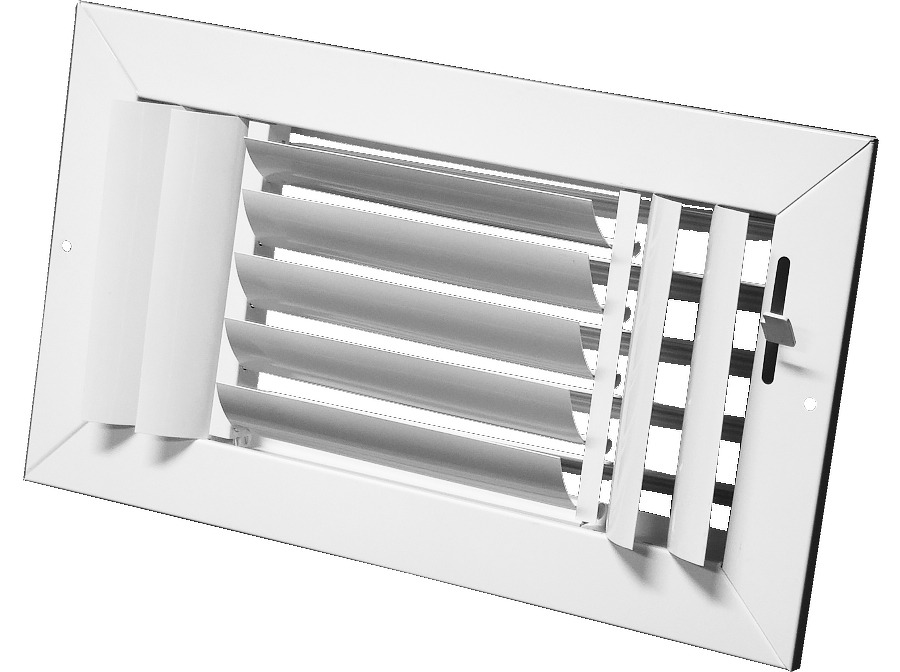

Adjustable Curved Blade Register (3-way)

Adjustable, curved blades
Multi-shutter damper
3-way deflection
Steel construction (SACB3)
Aluminum construction (AACB3)
White finish (standard) or Mill finish
Made in the U.S.A.

Part #	Description	Ctn Qty	List Price Each
SACB3W 0606	6" x 6" White	24	--
SACB3W 0804	8" x 4" White	24	--
SACB3W 0806	8" x 6" White	24	--
SACB3W 0808	8" x 8" White	16	--
SACB3W 1004	10" x 4" White	24	--
SACB3W 1006	10" x 6" White	24	--
SACB3W 1010	10" x 10" White	16	--
SACB3W 1204	12" x 4" White	24	--
SACB3W 1206	12" x 6" White	24	--
SACB3W 1208	12" x 8" White	16	--
SACB3W 1212	12" x 12" White	8	--
SACB3W 1406	14" x 6" White	24	--
SACB3W 1408	14" x 8" White	16	--


AACB3W 0606	6" x 6" White	24	--
AACB3W 0804	8" x 4" White	24	--
AACB3W 0808	8" x 8" White	16	--
AACB3W 1004	10" x 4" White	24	--
AACB3W 1006	10" x 6" White	24	--
AACB3W 1010	10" x 10" White	16	--
AACB3W 1206	12" x 6" White	24	--
AACB3W 1212	12" x 12" White	8	--
AACB3W 1406	14" x 6" White	24	--
AACB3W 1408	14" x 8" White	16	--

Unit Size	Face Velocity	300	400	500	600	700	800	900	1000	1100	1200
	Pressure Loss	0.007	0.010	0.016	0.022	0.031	0.040	0.050	0.062	0.075	0.090
6 x 6
Ak .090"	Cfm	27	35	45	55	65	70	80	90	100	110
	Throw A	1.5	2.0	2.5	3.0	3.5	4.0	4.5	5.0	5.0	5.5
	Throw B	1.5	2.0	3.0	3.5	4.0	4.5	5.0	6.0	6.5	7.0
8 x 4
Ak .080"	Cfm	24	32	40	48	56	64	72	80	88	96
	Throw A	1.5	2.0	2.5	3.0	3.5	4.0	4.5	5.0	5.0	5.5
	Throw B	1.5	2.0	3.0	3.5	4.5	5.0	5.5	6.0	7.0	7.5
8 x 6
Ak .100"	Cfm	30	40	50	60	70	80	90	100	110	120
	Throw A	1.5	2.0	2.5	3.0	3.5	4.0	4.5	5.0	5.5	6.0
	Throw B	1.5	2.5	3.0	3.5	4.5	5.0	5.5	6.0	7.0	7.5
8 x 8
Ak .160"	Cfm	48	2	80	95	110	130	145	160	175	190
	Throw A	1.5	2.5	3.5	4.0	4.5	5.0	6.0	6.5	7.0	7.5
	Throw B	2.5	3.5	4.0	5.0	5.5	7.0	7.5	8.5	9.0	10.0
10 x 4
Ak .095"	Cfm	29	38	48	57	67	76	86	95	105	114
	Throw A	1.5	2.0	2.5	3.0	3.5	4.0	4.5	5.0	5.0	5.5
	Throw B	1.5	2.0	3.0	3.5	4.0	4.5	5.0	6.0	6.5	7.0
10 x 6
Ak .150"	Cfm	45	60	75	90	105	120	135	150	165	180
	Throw A	1.5	2.5	3.0	4.0	4.5	5.0	5.5	6.5	7.0	7.5
	Throw B	2.0	3.0	3.5	4.5	5.0	6.0	6.5	7.0	80.0	9.0
10 x 8
Ak .200"	Cfm	60	80	100	120	140	160	180	200	220	240
	Throw A	1.5	2.5	3.5	4.5	5.0	5.5	6.5	7.0	8.0	8.5
	Throw B	2.0	3.0	4.0	5.5	5.5	6.5	7.0	8.0	8.5	9.5
10 x 10
Ak .240"	Cfm	72	95	120	145	170	190	215	240	265	290
	Throw A	2.0	3.0	4.0	5.0	5.5	6.5	7.5	8.0	9.0	10.0
	Throw B	2.5	3.5	4.5	5.5	6.0	7.0	8.0	9.0	10.0	11.0
12 x 4
Ak .100"	Cfm	30	40	50	60	70	80	90	100	110	120
	Throw A	1.5	2.0	2.5	3.0	3.5	4.0	4.5	5.0	5.5	6.0
	Throw B	1.5	2.5	3.0	3.5	4.5	5.0	5.5	6.0	7.0	7.5
12 x 6
Ak .180"	Cfm	54	70	90	110	125	145	160	180	200	215
	Throw A	1.5	2.5	3.5	4.5	5.0	5.5	6.5	7.0	8.0	8.5
	Throw B	2.0	3.0	4.0	5.5	5.5	6.5	7.0	8.0	8.5	9.5
12 x 8
Ak .230"	Cfm	69	92	115	138	161	184	207	230	253	276
	Throw A	2.0	3.0	4.0	5.0	5.5	6.5	7.5	8.0	9.0	10.0
	Throw B	2.5	3.5	4.5	5.5	6.0	7.0	8.0	9.0	10.0	11.0
12 x 10
Ak .290"	Cfm	87	115	145	175	205	230	260	290	320	350
	Throw A	2.5	3.5	4.5	5.0	6.5	7.0	8.0	9.0	9.5	10.5
	Throw B	3.0	4.0	5.0	5.5	7.0	7.5	8.5	9.5	10.5	11.0
12 x 12
Ak .350"	Cfm	105	140	175	210	245	280	315	350	385	420
	Throw A	2.5	3.5	4.5	6.0	6.5	7.5	8.5	9.5	10.5	12.0
	Throw B	3.5	4.0	5.0	6.5	7.5	8.5	9.5	10.0	11.0	13.0
14 x 4
Ak .130"	Cfm	39	53	65	78	90	105	118	130	143	155
	Throw A	1.5	2.5	3.5	4.0	4.5	5.0	6.0	6.5	7.0	7.5
	Throw B	2.5	3.5	4.0	5.0	5.5	7.0	7.5	8.5	9.0	10.0
14 x 6
Ak .210"	Cfm	63	85	105	125	145	170	190	210	230	250
	Throw A	1.5	2.5	3.5	4.0	5.0	6.0	6.5	7.0	8.0	10.5
	Throw B	2.0	3.5	4.5	5.0	5.5	6.5	7.5	8.5	9.5	11.5
14 x 8
Ak .265"	Cfm	80	106	133	159	186	212	239	265	292	318
	Throw A	2.5	3.5	4.5	5.0	6.5	7.0	8.0	9.0	9.5	10.5
	Throw B	3.0	4.0	5.0	5.5	7.0	7.5	8.5	9.5	10.5	11.0
14 x 10
Ak. 345"	Cfm	104	138	173	207	242	276	311	345	380	414
	Throw A	2.5	3.5	4.5	6.0	6.5	7.5	8.5	9.5	10.5	12.0
	Throw B	3.5	4.0	5.0	6.5	7.5	8.5	9.5	10.0	11.0	13.0
14 x 12
Ak .420"	Cfm	126	170	210	250	290	340	380	420	460	500
	Throw A	2.5	3.5	4.5	6.0	7.0	8.0	9.0	10.0	11.0	12.5
	Throw B	3.5	4.5	5.5	7.0	8.0	9.0	10.0	11.0	12.5	14.0
14 x 14
Ak .480"	Cfm	144	190	240	290	335	385	430	480	530	575
	Throw A	3.0	4.0	5.0	6.5	7.5	8.5	9.5	10.0	12.0	13.0
	Throw B	3.5	5.0	6.5	7.5	9.0	10.0	11.0	12.5	14.0	15.0
14 x 6
Ak .210"	Cfm	63	85	105	125	145	170	190	210	230	250
	Throw A	1.5	2.5	3.5	4.0	5.0	6.0	6.5	7.0	8.0	10.5
	Throw B	2.0	3.5	4.5	5.0	5.5	6.5	7.5	8.5	9.5	11.5
14 x 8
Ak .265"	Cfm	80	106	133	159	186	212	239	265	292	318
	Throw A	2.5	3.5	4.5	5.0	6.5	7.0	8.0	9.0	9.5	10.5
	Throw B	3.0	4.0	5.0	5.5	7.0	7.5	8.5	9.5	10.5	11.0
14 x 10
Ak. 345"	Cfm	104	138	173	207	242	276	311	345	380	414
	Throw A	2.5	3.5	4.5	6.0	6.5	7.5	8.5	9.5	10.5	12.0
	Throw B	3.5	4.0	5.0	6.5	7.5	8.5	9.5	10.0	11.0	13.0
14 x 12
Ak .420"	Cfm	126	170	210	250	290	340	380	420	460	500
	Throw A	2.5	3.5	4.5	6.0	7.0	8.0	9.0	10.0	11.0	12.5
	Throw B	3.5	4.5	5.5	7.0	8.0	9.0	10.0	11.0	12.5	14.0
14 x 14
Ak .480"	Cfm	144	190	240	290	335	385	430	480	530	575
	Throw A	3.0	4.0	5.0	6.5	7.5	8.5	9.5	10.0	12.0	13.0
	Throw B	3.5	5.0	6.5	7.5	9.0	10.0	11.0	12.5	14.0	15.0
