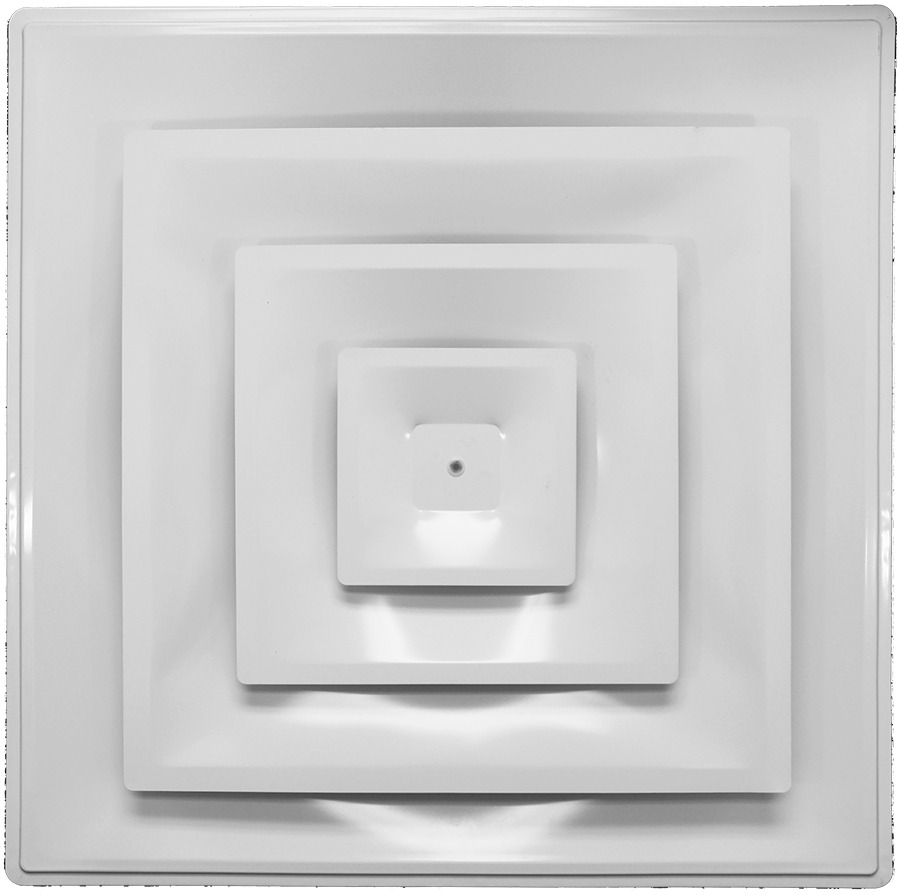

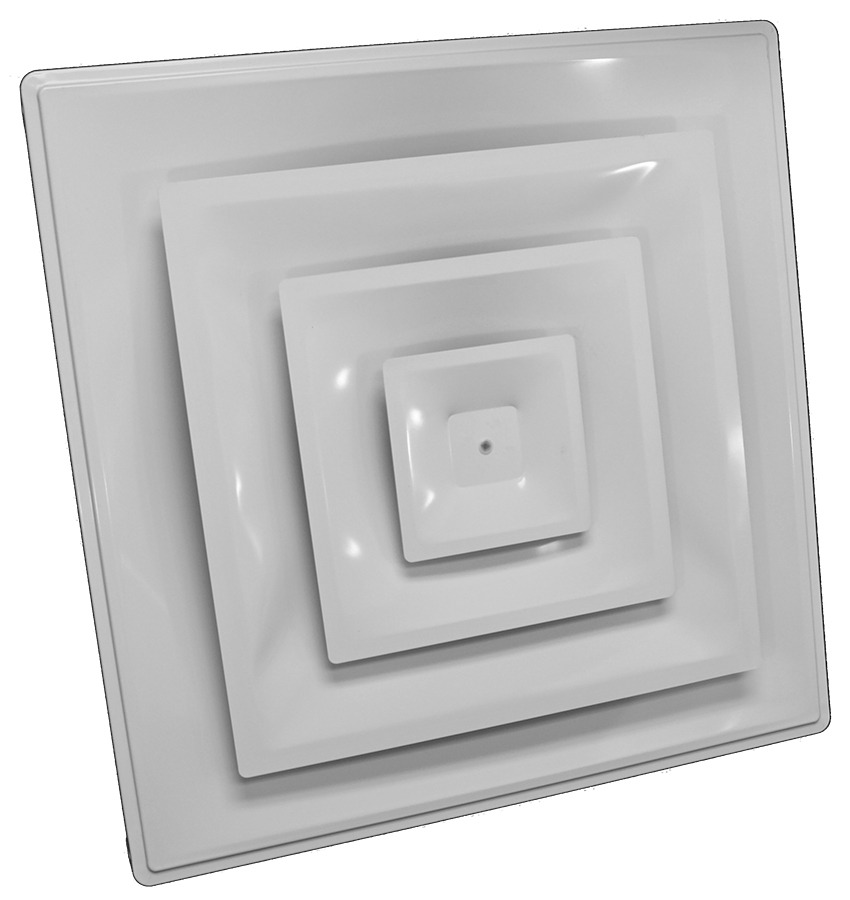

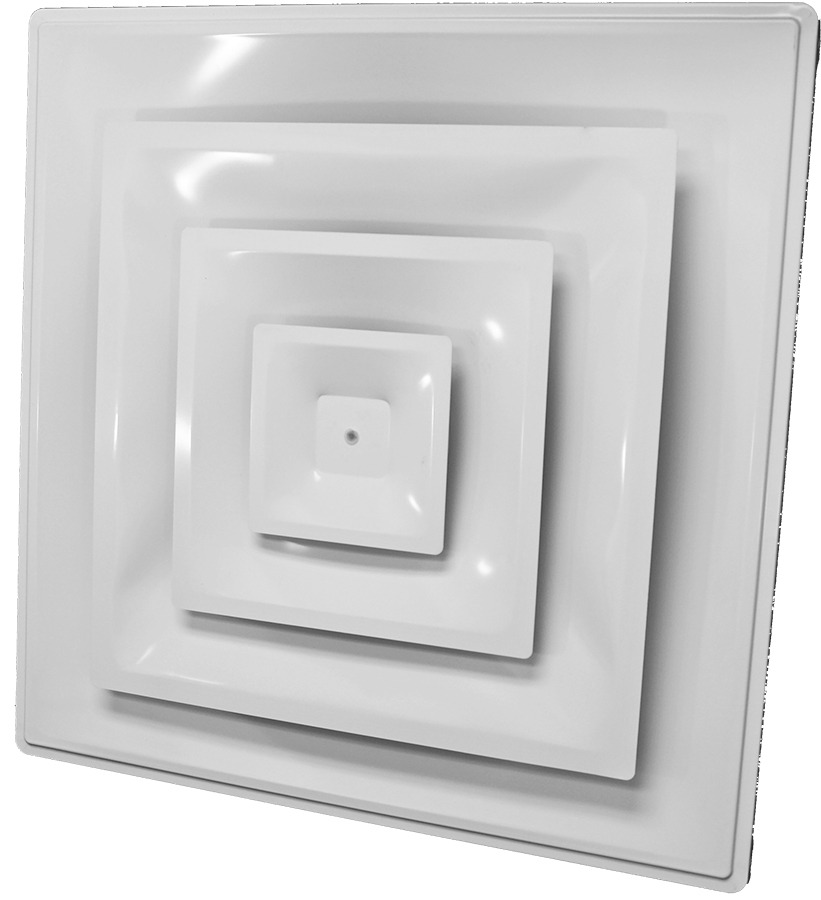

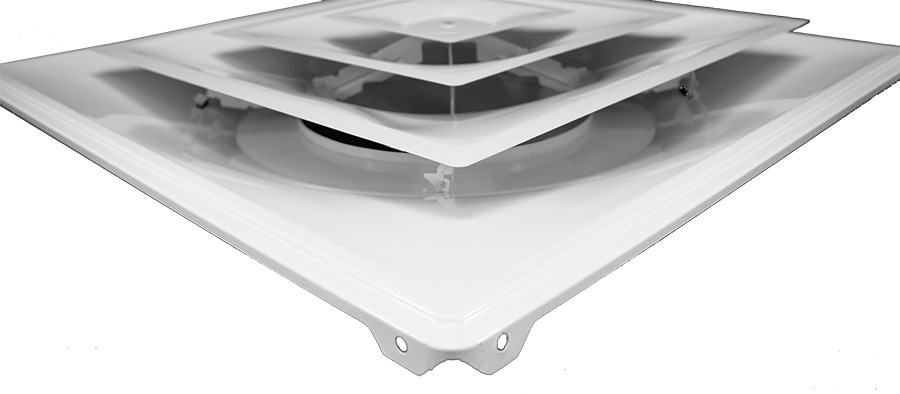

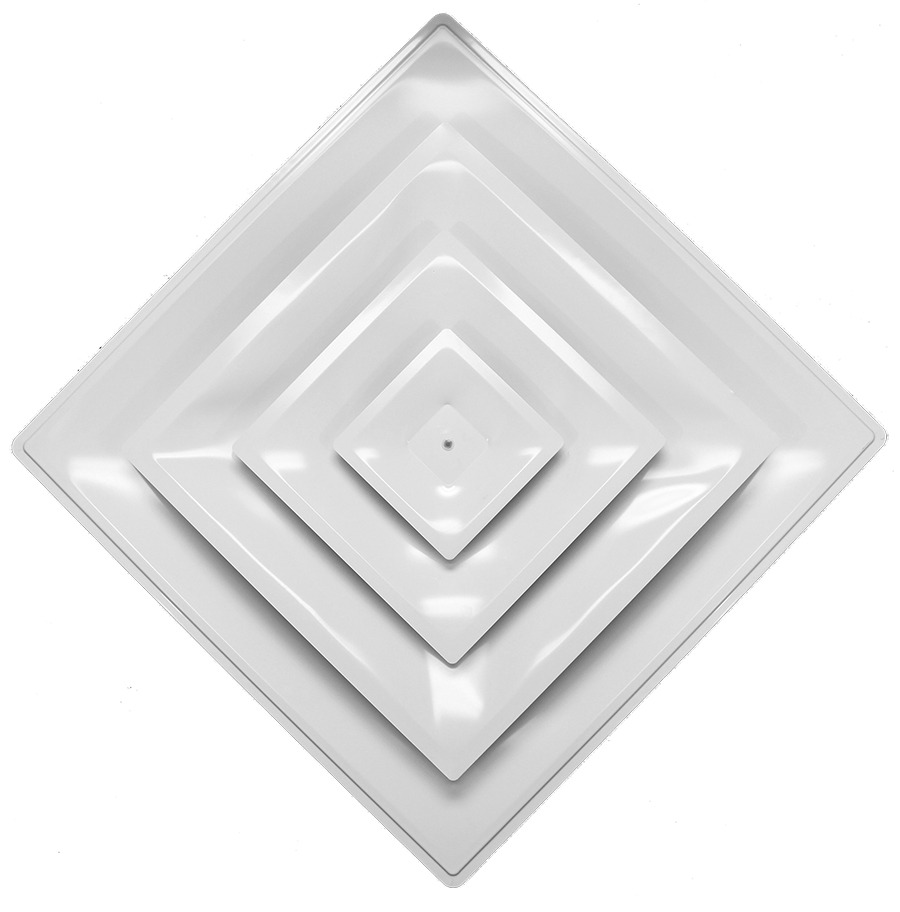

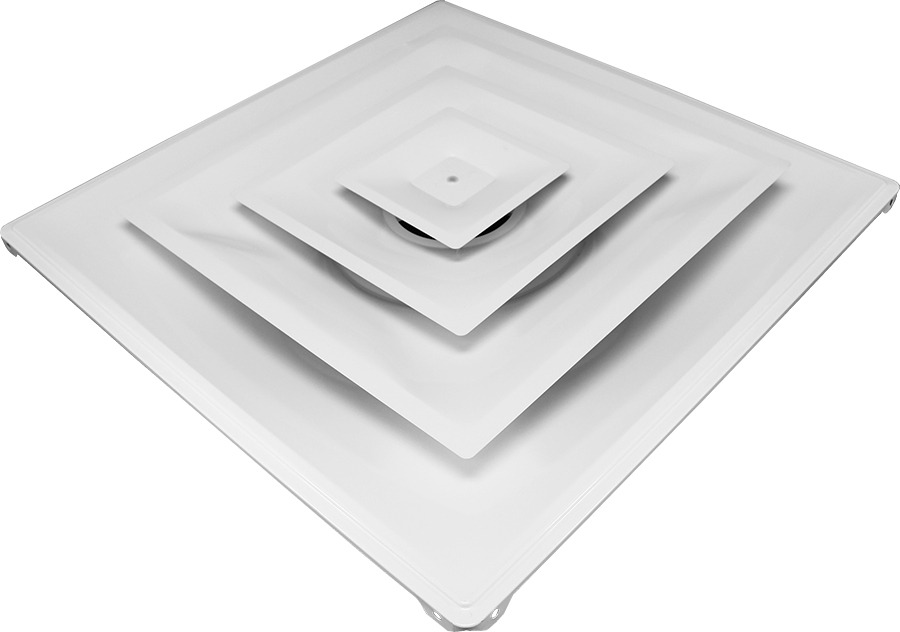

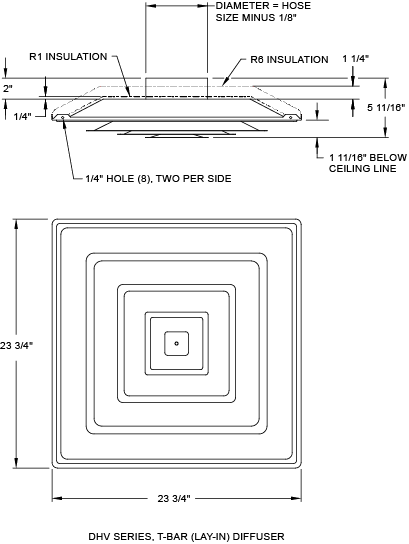

DHV

Steel

T-bar Diffuser

  • A design alternative to our standard Series HVS diffuser
  • Steel construction
  • 3-tier diffusion, 360° pattern
  • Fixed collar and no collar models
  • R1 insulation blanket
  • White finish
  • Made in the U.S.A.
  • Packed 1 per carton, 60 per pallet

Associated Series:

  • Series DHV I6
    • DHV + R6 insulation blanket
  • Series DHV ID
    • DHV + installed Series 3800 damper

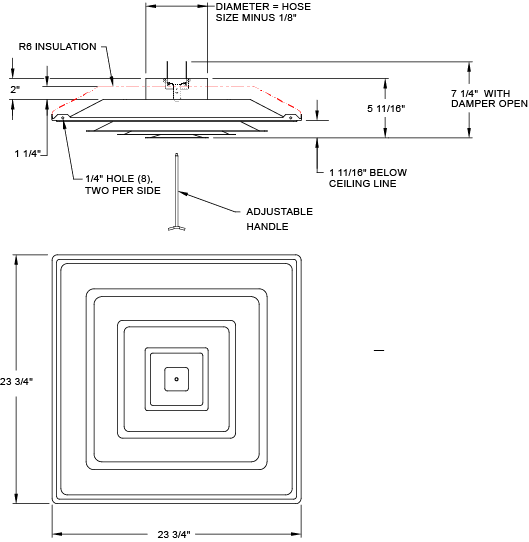

  • Series DHV I6D
    • DHV + R6 insulation blanket and Series 3800 damper

Part #DescriptionCtn QtyList Price Each
DHVIANo collar, R1 insulation1--
DHVI066" collar, R1 insulation1--
DHVI088" collar, R1 insulation1--
DHVI1010" collar, R1 insulation1--
DHVI1212" collar, R1 insulation1--
DHVI1414" collar, R1 insulation1--

DHVI6ANo collar, R6 insulation1--
DHVI6066" collar, R6 insulation1--
DHVI6088" collar, R6 insulation1--
DHVI61010" collar, R6 insulation1--
DHVI61212" collar, R6 insulation1--
DHVI61414" collar, R6 insulation1--

DHVI06DFixed, 6" collar, R1, 3800 Damper1--
DHVI08DFixed, 8" collar, R1, 3800 Damper1--
DHVI10DFixed, 10" collar, R1, 3800 Damper1--
DHVI12DFixed, 12" collar, R1, 3800 Damper1--
DHVI14DFixed, 14" collar, R1, 3800 Damper1--

DHVI606DFixed, 6" collar, R6, 3800 Damper1--
DHVI608DFixed, 8" collar, R6, 3800 Damper1--
DHVI610DFixed, 10" collar, R6, 3800 Damper1--
DHVI612DFixed, 12" collar, R6, 3800 Damper1--
DHVI614DFixed, 14" collar, R6, 3800 Damper1--
